TFAST Mounting Kit for Bending Beam Load Cells

IMAGES

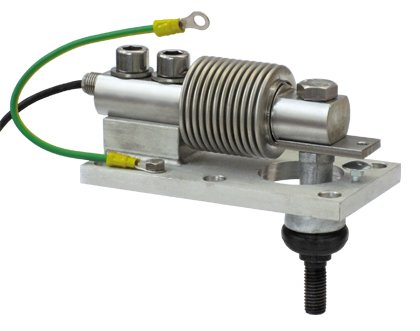

The Laumas TFAST is a lightweight aluminum and stainless steel mounting kit for bending beam load cells (FCAL, FCAX series) supporting up to 500 kg (1,102 lb). It features an aluminum alloy tension ball joint, an AISI 304 stainless steel lower plate, and a transport locking screw for compact, low-profile weighing installations.

PRODUCT DETAILS

The TFAST is a compact, low-profile mounting kit designed for bending beam load cells in light-capacity weighing systems up to 500 kg (1,102 lb). Its aluminum alloy tension ball joint provides multi-directional flexibility for the load cell, automatically compensating for minor misalignments in the support structure. The AISI 304 stainless steel lower plate provides corrosion resistance at the base of the assembly.

A transport locking screw prevents movement and potential damage to the load cell during shipping and installation; once the structure is assembled and leveled, the screw is released so the load cell operates normally. The TFAST’s compact and lightweight construction makes it particularly well-suited for applications where space is limited.

Most Common Applications: Small platform scales, light process equipment, laboratory and checkweighing scales.

Capacities

Up to 500 kg (1,102 lb)

Material

Aluminum Alloy (ball joint), AISI 304 Stainless Steel (lower plate)
