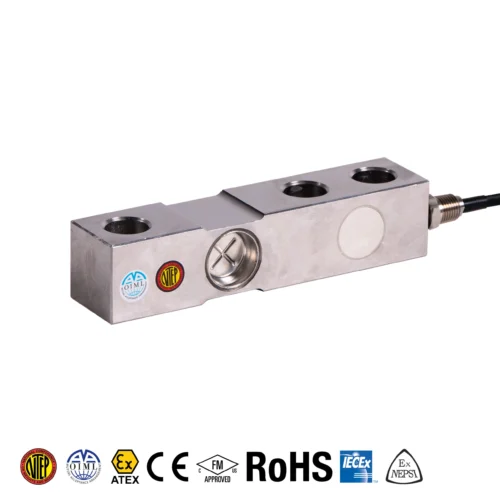

563YS30 Single-Ended Shear Beam Load Cell
The Anyload 563YS30 is a 17-4 PH stainless steel single-ended shear beam load cell with a welded hermetic seal (IP68) available in capacities from 500 lb to 20,000 lb with 3 mV/V output, NTEP and OIML certifications, and ATEX/FM/IECEx options. Designed for wash-down and corrosive environments, it is an ideal choice for food processing, chemical, and outdoor industrial weighing applications.
PRODUCT DETAILS
The 563YS30 is the 3 mV/V stainless steel variant of 563YS series, combining the corrosion resistance of 17-4 PH stainless steel with a welded hermetic seal rated IP68 – providing the highest level of environmental protection for a shear beam load cell in continuous or submerged wet environments. Available from 500 lb to 20,000 lb capacity, the 563YS30 achieves a full scale output of 3.0 mV/V ±0.25% with accuracy specifications of < ±0.023% for non-linearity, repeatability, and hysteresis across all capacities. NTEP Class III certification covers single-cell (nmax of 1:5,000 or 1:6,000) and multiple-cell (nmax of 1:9,500 or 1:10,000) legal-for-trade applications. OIML certification is available. ATEX, FM, and IECEx approved versions are available with the "-Ex" suffix.
Most Common Applications: Food processing and wash-down floor scales, chemical and pharmaceutical platform scales, outdoor industrial weighing, legal-for-trade stainless steel weighing systems.
| Capacities | 500 lb (226.80 kg), 1,000 lb (453.59 kg), 2,000 lb (907.18 kg), 2,500 lb (1,133.98 kg), 4,000 lb (1,814.37 kg), 5,000 lb (2,267.96 kg), 10,000 lb (4,535.92 kg), 15,000 lb (6,803.89 kg), 20,000 lb (9,071.85 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.023% |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 3.0 mV/V ±0.25% |
| Maximum Excitation | 15 V DC |
| Input Bridge Resistance | 350 ? ±7 |
| Output Bridge Resistance | 350 ? ±3 |
| Operating Temperature | ?30°C to +70°C (?22°F to +158°F) |
| Compensated Temperature | ?10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP68 |
| Material | 17-4 PH Stainless Steel |
| Protective Coating | – |
