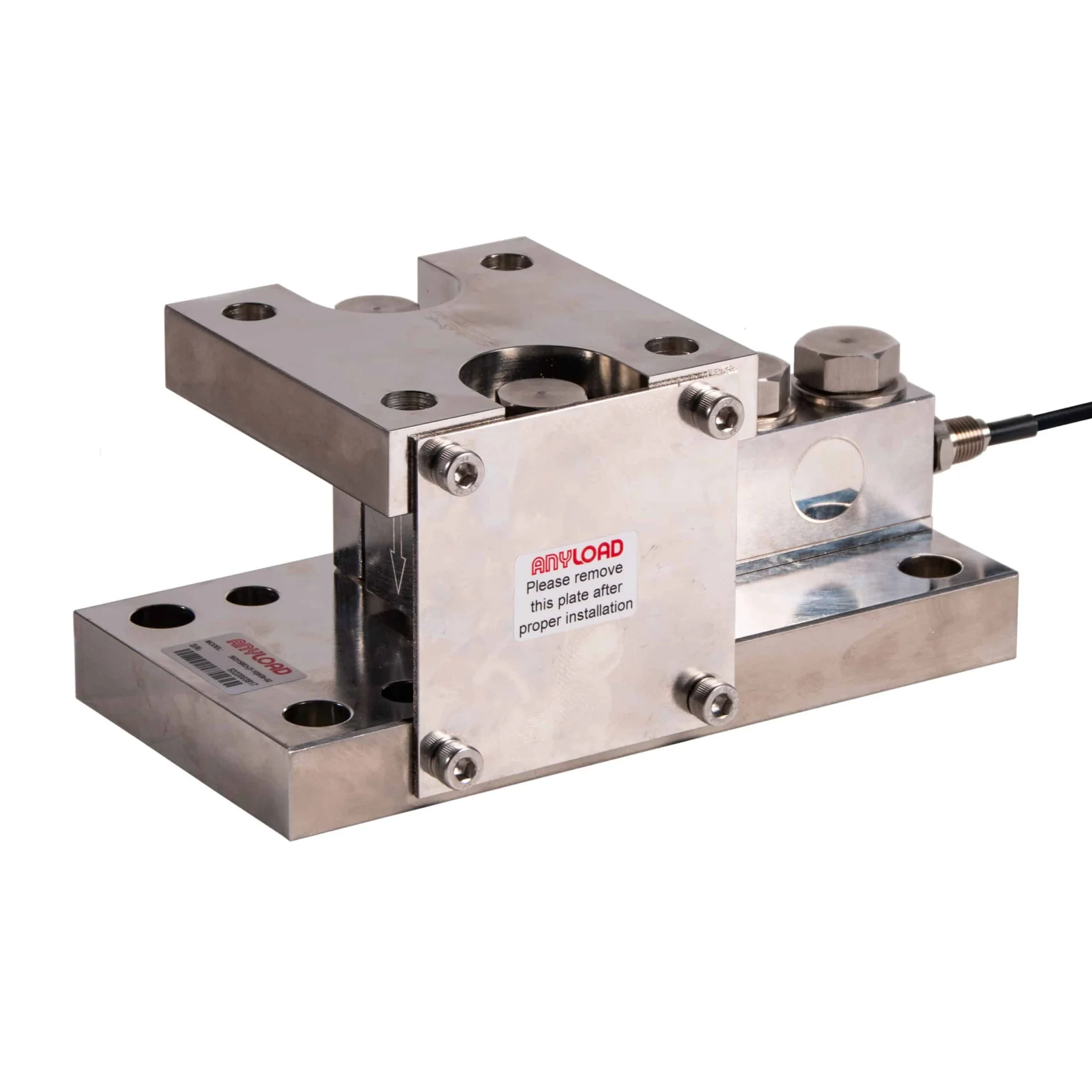

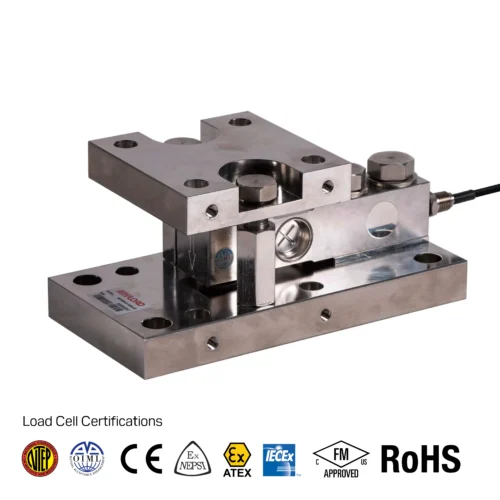

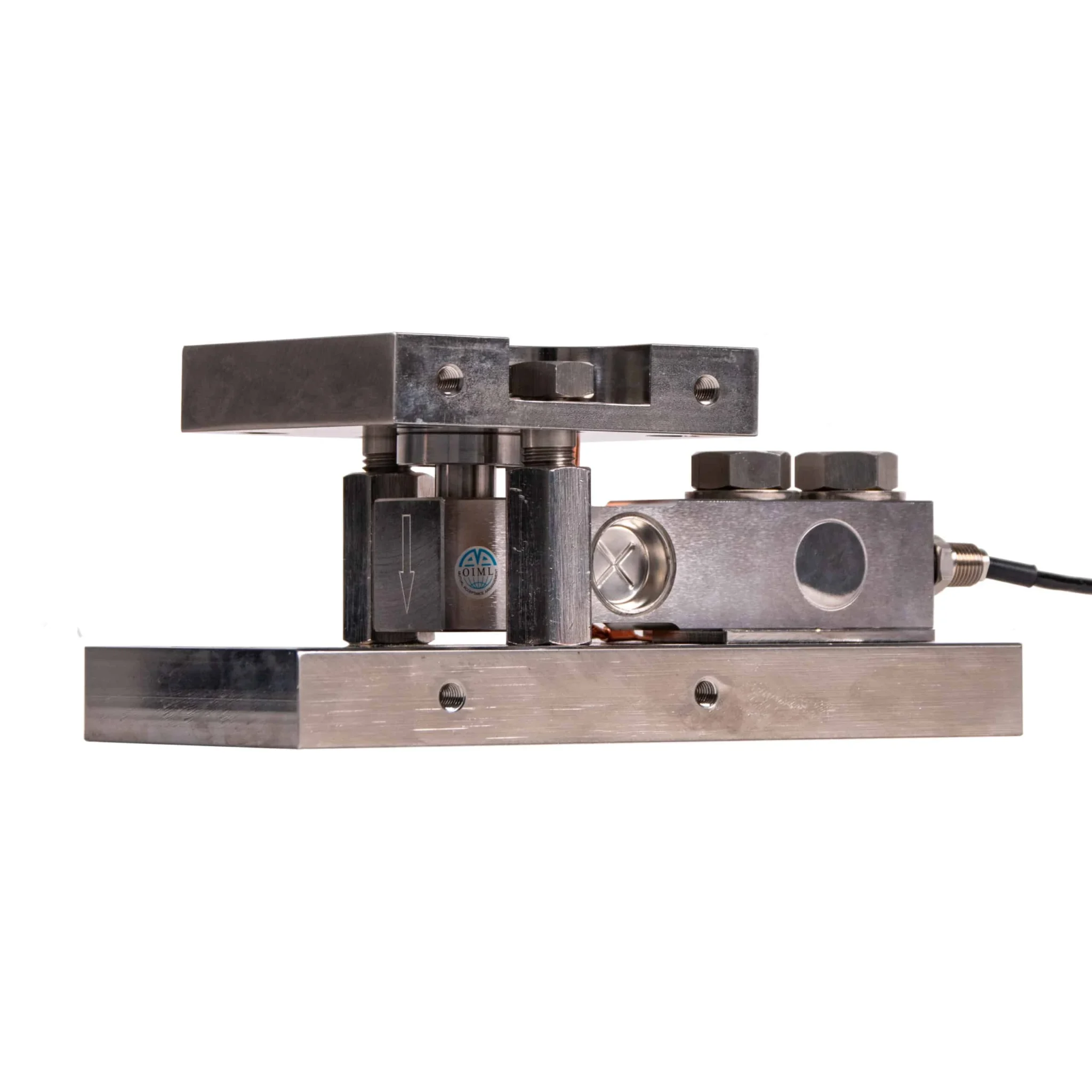

563YSM3-02 Weigh Module for Single-Ended Beam Load Cells
The Anyload 563YSM3-02 is a stainless steel weigh module for 563YS series single-ended beam load cells, available in capacities from 500 lb to 10,000 lb. It features a rocker pin loading design, anti-lifting and overloading protection, and lateral stops for secure installation in hygienic and corrosive weighing environments.
PRODUCT DETAILS
The 563YSM3-02 is a stainless steel weigh module for single-ended beam load cells in hygienic and corrosion-resistant tank, vessel, and hopper weighing applications from 500 lb to 10,000 lb per loading point. The rocker pin loading design allows the tank or vessel to expand and contract with temperature changes without transmitting bending forces to the load cell, maintaining measurement accuracy in thermally variable environments.
Both uplift and overload protection are built in, with lateral stops preventing horizontal displacement of the weighed structure. Stainless steel construction throughout makes the 563YSM3-02 ideal for food, pharmaceutical, and chemical processing environments, where corrosion resistance and hygienic design are essential.
Most Common Applications: Food and pharmaceutical tank and vessel weighing, chemical process hopper scales, hygienic platform weighing, stainless steel silo scales.
| Capacities | 563YSM3-(0.5-SE5)Klb-02: 500 lb to SE5,000 lb (227 kg to 2,268 kg); 563YSM3-(5-10)Klb-02: 5,000 lb to 10,000 lb (2,268 kg to 4,536 kg) |
|---|---|
| Material | Stainless Steel |
