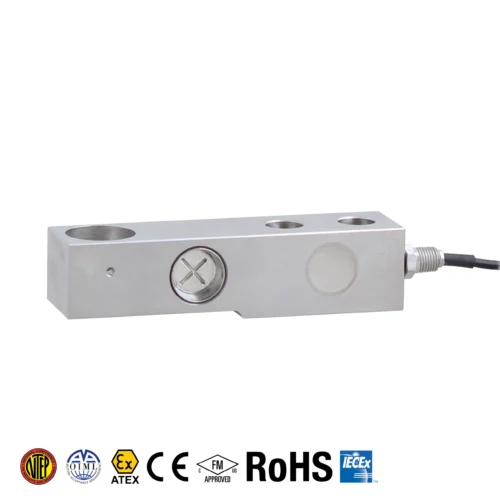

563YSMT Single-Ended Shear Beam Load Cell
The Anyload 563YSMT is a low-profile 17-4 PH stainless steel single-ended shear beam load cell available in capacities from 250 lb to 10,000 lb with IP68 protection for capacities >= 500 lb, NTEP and OIML certifications, and ATEX/FM/IECEx options. Its compact, low-profile body and optional foot or pin mounting hardware make it the ideal choice for stainless steel floor scales and platform scales with minimal height clearance.
PRODUCT DETAILS
The 563YSMT is a low-profile stainless steel shear beam load cell designed for applications where installation height is restricted and where the corrosion resistance of stainless steel is required. Constructed from 17-4 PH precipitation hardening stainless steel, the 563YSMT has a notably lower profile than conventional shear beam designs, enabling it to fit into compact-scale decks and low-clearance platform structures. Full scale output is 2 mV/V ±0.25% with accuracy specifications of < ±0.023% (non-linearity, repeatability, hysteresis). NTEP certification is available. OIML certified for 1.25K to 10K lbs. A foot or PIN mounting hardware accessory must be ordered separately. ATEX, FM, and IECEx approved versions available with "-Ex" suffix.
Most Common Applications: Low-profile stainless steel floor and platform scales, food processing and pharmaceutical weighing systems, compact wash-down vessel scales, legal-for-trade stainless steel weighing systems with minimal height clearance.
| Capacities | 250 lb (113.40 kg), 500 lb (226.80 kg), 1.25 Klb (566.99 kg), 2.5 Klb (1,133.98 kg), 4 Klb (1,814.37 kg), 5 Klb (2,267.96 kg), 10 Klb (4,535.92 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.023% |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±0.25% |
| Maximum Excitation | 15 V DC |
| Input Bridge Resistance | 350 ? ±7 |
| Output Bridge Resistance | 350 ? ±3 |
| Operating Temperature | ?30°C to +70°C (?22°F to +158°F) |
| Compensated Temperature | ?10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP68 |
| Material | 17-4 PH Stainless Steel |
| Protective Coating | – |
