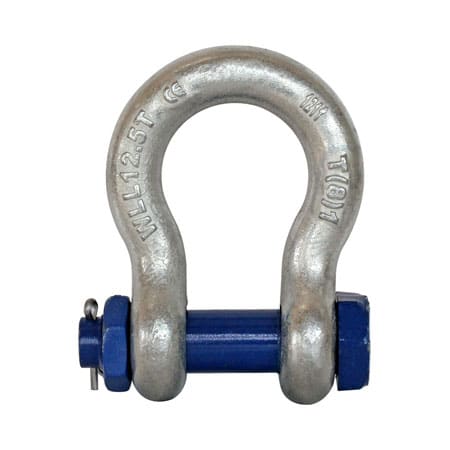

The Anyload TBX is a high tensile bolt type anchor shackle in alloy steel, available from 2 t to 110 t (4,409 lb to 242,508 lb). Its Working Load Limit is permanently engraved on each shackle for easy field identification.
The TBX is a high tensile bolt type anchor shackle designed for lifting and rigging applications where pin security and long-term installation reliability are required.
Available from 2 t to 110 t, the TBX is proof tested at the factory to 200% of its Working Load Limit, and the breaking load is rated at 400% of the Working Load Limit.
Most Common Applications: Overhead lifting, crane and hoist rigging, construction, marine lifting, permanent and long-term rigging installations, multi-leg sling assemblies.
| Working Load Limit | 2 t (4,409 lb), 2.5 t (5,512 lb), 3.25 t (7,165 lb), 5 t (11,023 lb), 7 t (15,432 lb), 9.5 t (20,944 lb), 12.5 t (27,558 lb), 15 t (33,069 lb), 18 t (39,683 lb), 21 t (46,297 lb), 30 t (66,139 lb), 40 t (88,185 lb), 50 t (110,231 lb), 80 t (176,370 lb), 110 t (242,508 lb) |
|---|---|
| Proof Load | 200% of rated capacity |
| Breaking Load | 400% of rated capacity |
| Temperature Range | -40°C to 204°C (-40°F to 400°F) |
| Material | Alloy Steel |
| Shackle Type | Bolt Type Anchor Shackle |
