T24-ACMx-SA Wireless Strain Bridge Transmitter

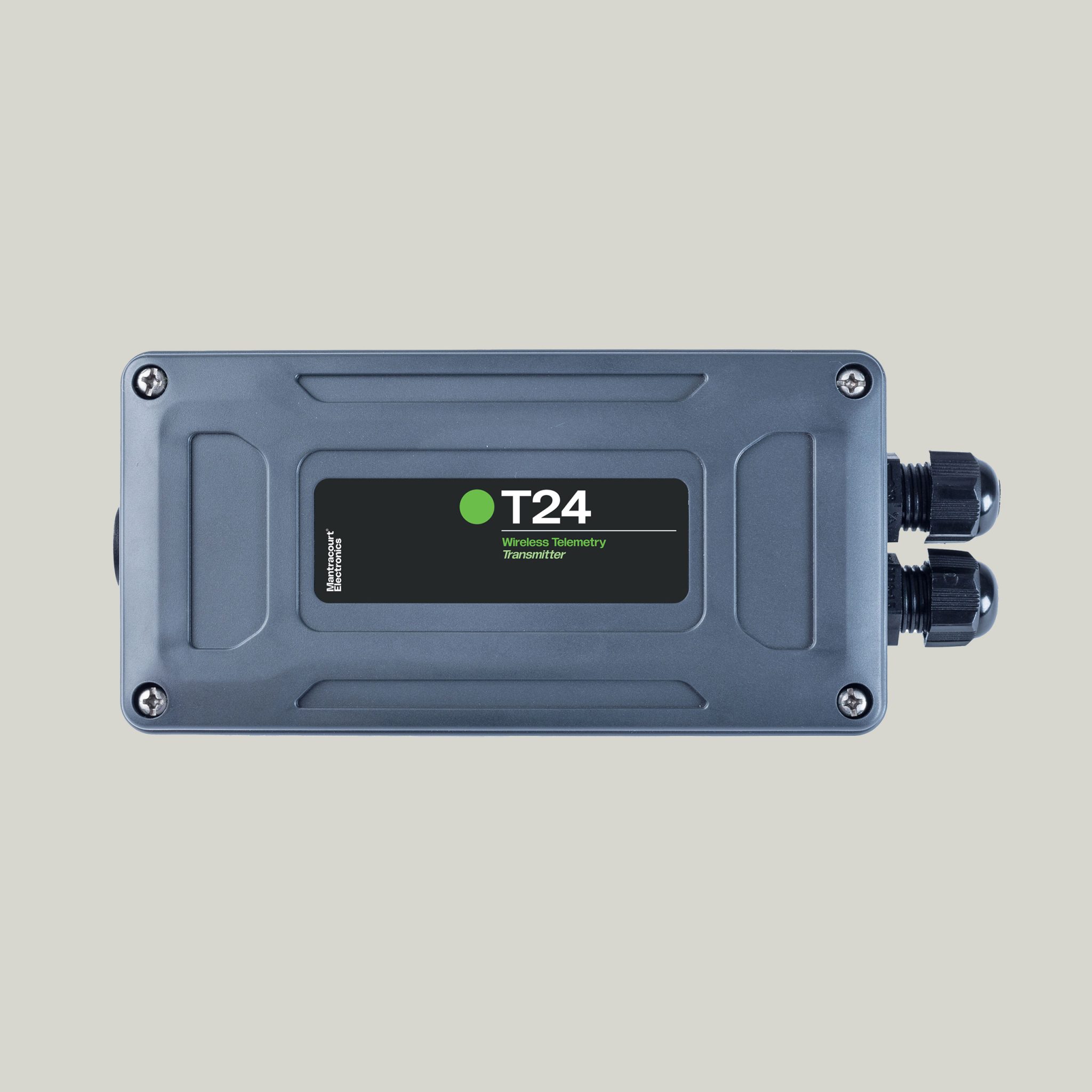

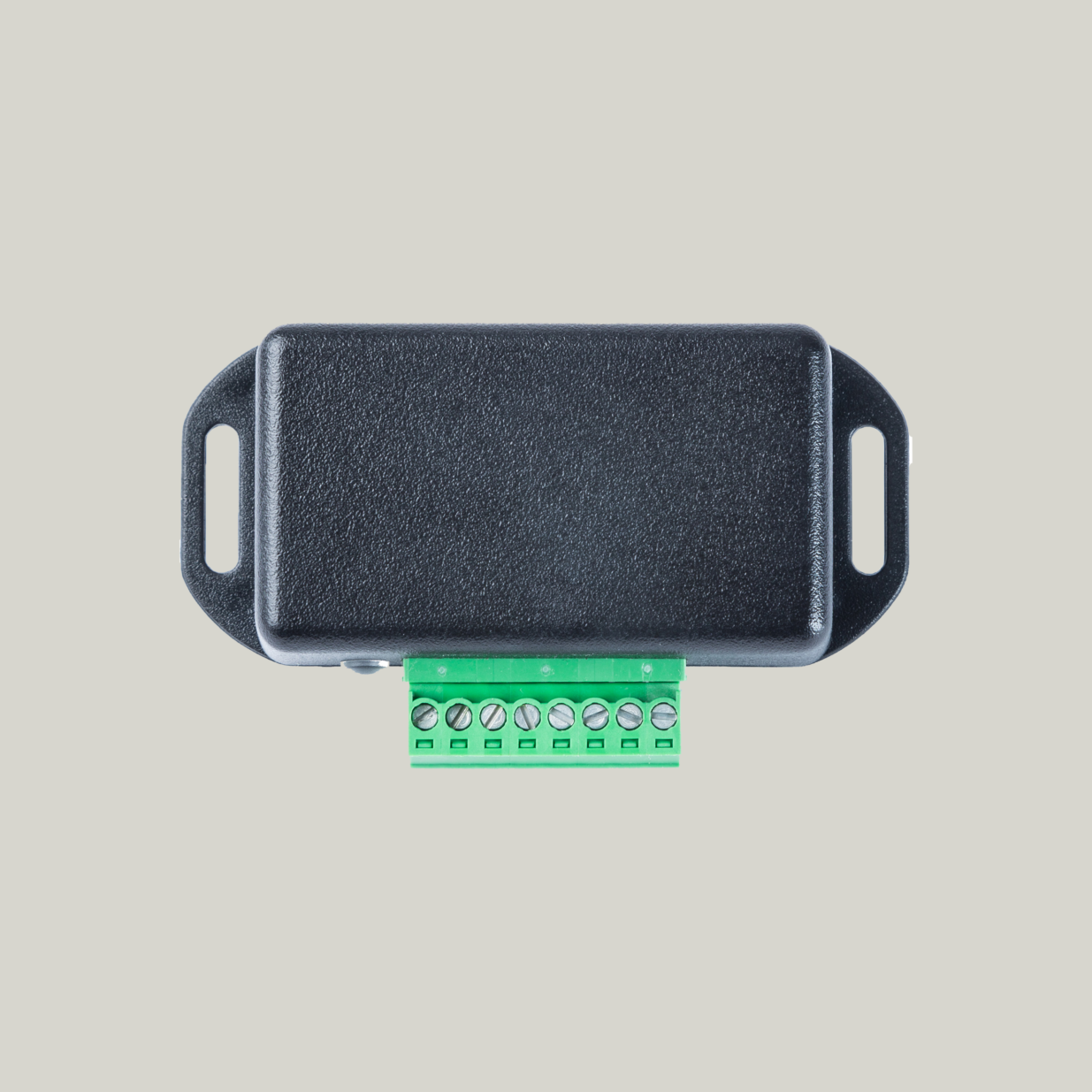

The Mantracourt T24-ACMx-SA packages the T24-SA wireless strain bridge transmitter in a ready-to-install industrial enclosure, offered in three options: the IP67 T24-ACM (external power or 2x D cell batteries), the compact IP67 T24-ACMi (2x AA batteries), and the miniature IP50 T24-ACMm (2x AAA batteries). The T24-ACM and T24-ACMi have a range of up to 2625 ft (800 m) while the T24-ACMm has a range of up to 1640 ft (500 m) at 2.4 GHz to any T24 receiver.
PRODUCT DETAILS
The T24-ACMx-SA is the enclosed, field-ready version of Mantracourt’s wireless strain bridge transmitter. Each enclosure option adds power supply provisions, water and dust protection, field connectivity, and a ready-made mounting solution to the same measurement platform: 5 V excitation for strain bridge transducers down to 85 ohms, transmission rates from once per day to 200 per second, and wireless coverage that reaches any T24 receiver — displays, handheld display, analogue outputs, relay modules, and computer interfaces. The T24-ACM accepts external power or two D cell batteries and battery life for up to a year set at one per second transmission, the T24-ACMi runs on two AA batteries, and the miniature T24-ACMm runs on two AAA batteries where space is tight. This makes it a practical way to convert a cabled load cell into a wireless one for construction shoring strut monitoring, crane and under-hook weighing, and other industrial force measurement tasks.
Most Common Applications: Crane scales, tension and compression monitoring, converting cabled load cells to wireless operation, portable weighing systems.
| Input Channels | – |
|---|---|
| Load Cell Inputs | 1 strain bridge (85 Ω minimum) |
| Output Signal | – |
| Communication | 2.4 GHz licence-exempt wireless, range from 1,640 to 2,625 ft |
| Relay Outputs | – |
| Digital Inputs | – |
| Display | – |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Conversion per second | up to 200 update per second |
| Power Supply | T24-ACM: 5 to 18 VDC (external) or 2x D-cell batteries, T24-ACMi: 2x AA batteries, T24-ACMm: 2x AAA batteries |
| IP Rating | T24-ACM & T24-ACMi: IP67, T24-ACMm: IP50 |
| Dimensions | T24-ACM: 6.45 x 3.31 x 2.24 in (164 x 84 x 57 mm), T24-ACMi: 3.15 x 2.44 x 1.33 in (80 x 62 x 34 mm), T24-ACMm: 2.99 x 1.38 x 0.79 in (76 x 35 x 20 mm) |
| Approvals | FCC, IC |
