T24-ACMx-IA Wireless Strain Bridge Transmitter

IMAGES

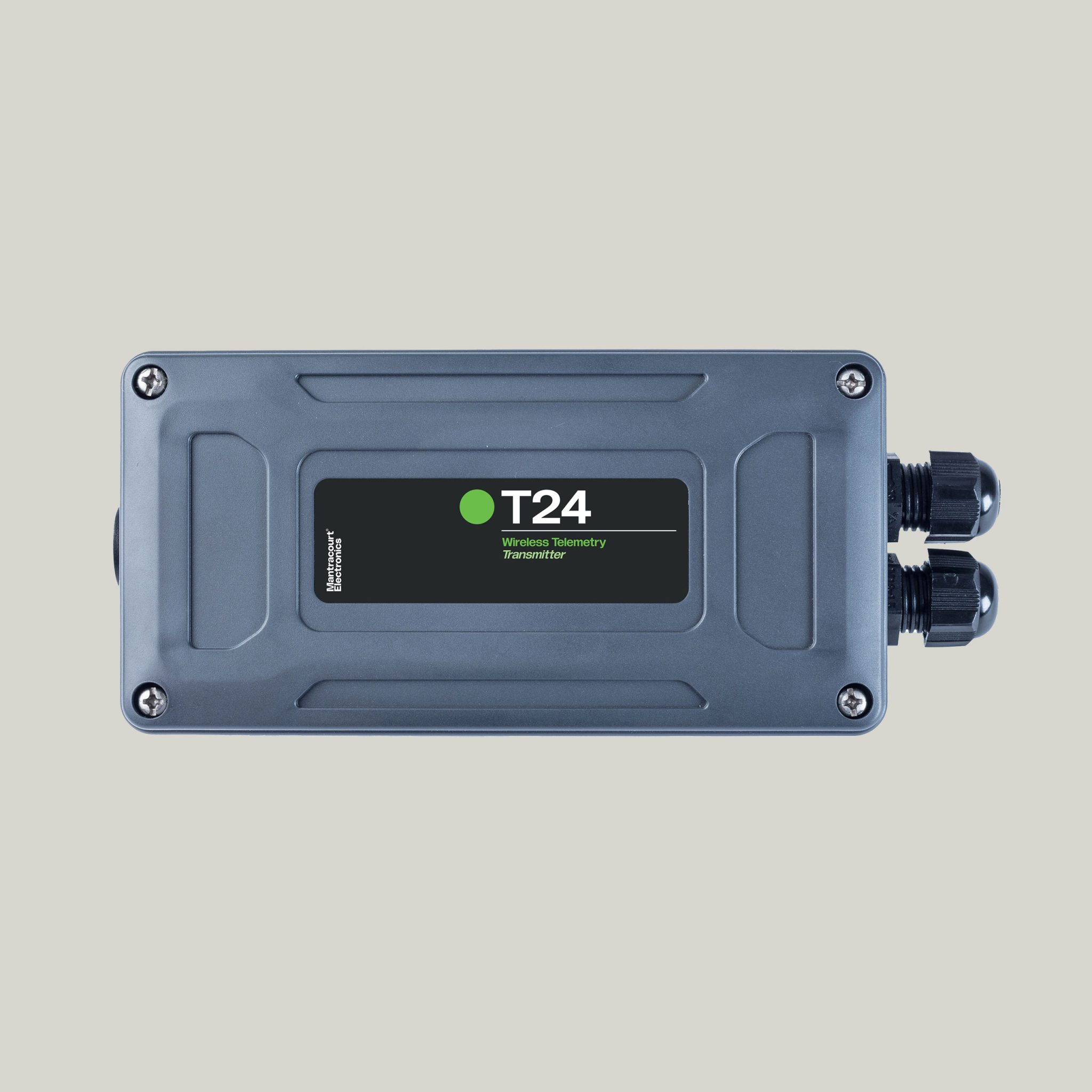

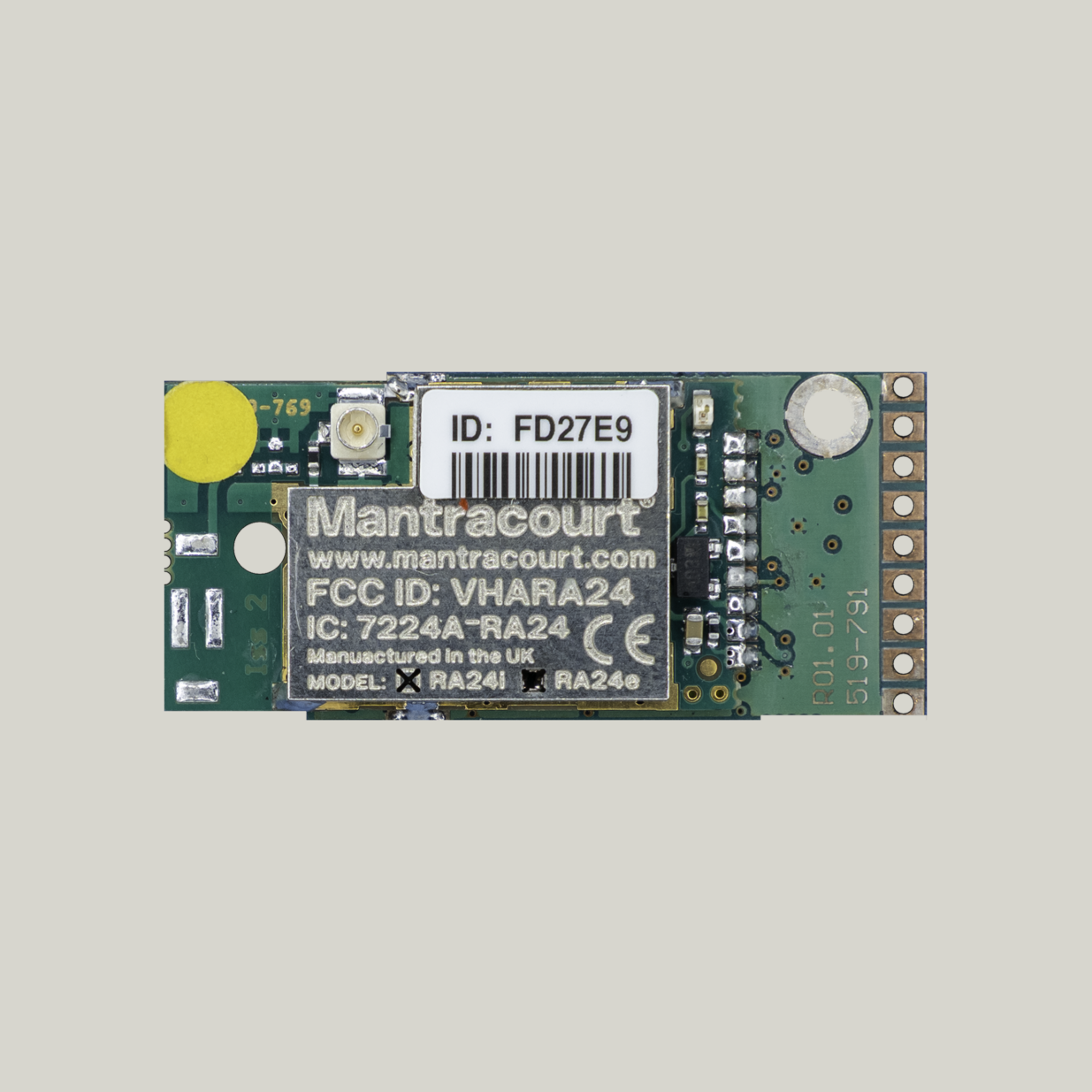

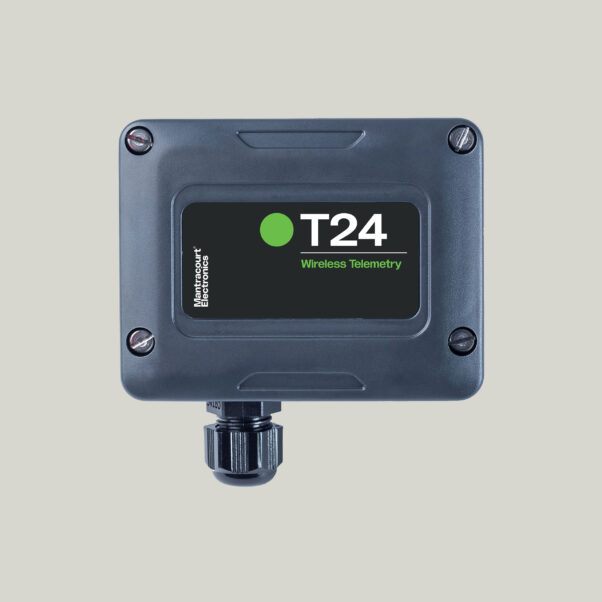

The Mantracourt T24-ACMx-IA packages the T24-IA wireless 2 wire 4-20 mA transmitter in a ready-to-install industrial enclosure, offered in three options: the IP67 T24-ACM (external power or 2x D-cell batteries), the compact IP67 T24-ACMi (2x AA batteries), and the miniature IP50 T24-ACMm (2x AAA batteries). It transmits current-loop sensor readings up to 2,626 ft for the T24-ACM & T24ACMi while range of up to 1,640 ft for the T24-ACMm at 2.4 GHz to any T24 receiver.

PRODUCT DETAILS

The T24-ACMx-IA is the enclosed, field-ready version of Mantracourt’s wireless 4-20 mA transmitter. Each enclosure option adds power supply provisions, water and dust protection, field connectivity, and a ready-made mounting solution to the same measurement platform: a 4-20 mA input for conditioned sensors such as pressure, inclinometer, accelerometer, depth, vibration, temperature, and flow transducers, with 5 V excitation at up to 50 mA to power the sensor. Readings reach any T24 receiver, from displays and handheld displays to analogue outputs, relay modules, and computer interfaces. The T24-ACM accepts external power or two D-cell batteries, the T24-ACMi runs on two AA batteries, and the miniature T24-ACMm runs on two AAA batteries, making it straightforward to cut the cable on existing 4-20 mA instrumentation and monitor it wirelessly on site.

Most Common Applications: Adding wireless monitoring, pressure monitoring, vibration monitoring, remote industrial sensor installations.

Input Channels

1x 4-20mA

Load Cell Inputs

Output Signal

Communication

2.4 GHz licence-exempt wireless, range from 1,640 to 2,625 ft

Relay Outputs

Digital Inputs

Display

Operating Temperature

-20°C to +55°C (-4°F to +131°F)

Storage Temperature

-40°C to +85°C (-40°F to +185°F)

Conversion per second

up to 200 update per second

Power Supply

T24-ACM: 5 to 18 VDC (external) or 2x D-cell batteries, T24-ACMi: 2x AA batteries, T24-ACMm: 2x AAA batteries

IP Rating

T24-ACM & T24-ACMi: IP67, T24-ACMm: IP50

Dimensions

T24-ACM: 6.45 x 3.31 x 2.24 in (164 x 84 x 57 mm), T24-ACMi: 3.15 x 2.44 x 1.33 in (80 x 62 x 34 mm), T24-ACMm: 2.99 x 1.38 x 0.79 in (76 x 35 x 20 mm)

Approvals

FCC, IC
