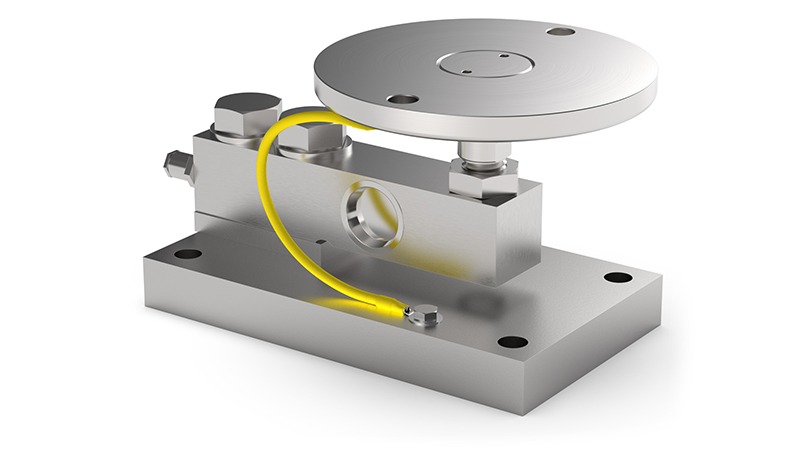

PV80EN1090 Mounting Kit for Shear Beam Load Cells
The Laumas PV80EN1090 is an AISI 304 stainless steel mounting kit for shear beam load cells (FTP, FTZ series) supporting up to 5,000 kg (11,023 lb), certified according to EN 1090. It features a self-centering joint foot for side-load and tilt protection, adjustable height, and a locking screw for safe transport and installation.
PRODUCT DETAILS
The PV80EN1090 mounting kit provides a robust, fully stainless steel solution for installing shear beam load cells in structural and industrial weighing applications at capacities up to 5,000 kg (11,023 lb). Constructed entirely from AISI 304 stainless steel, it is suited for environments where corrosion resistance and long-term mechanical integrity are essential — including outdoor platforms, food production facilities, and chemical processing installations.
A self-centering stainless steel joint foot resists lateral forces and prevents tipping, while also compensating for any angular misalignment between the supporting structure’s surfaces. Adjustable height allows the kit to be fine-tuned during installation for better load distribution. The integrated locking screw secures the load cell during transport and initial assembly, then is released for normal weighing operation.
Most Common Applications: Structural weighing platforms, outdoor floor scales, industrial tank and vessel weighing, conveyor scales in corrosive environments.
| Capacities | Up to 5,000 kg (11,023 lb) |
|---|---|
| Material | AISI 304 Stainless Steel |
