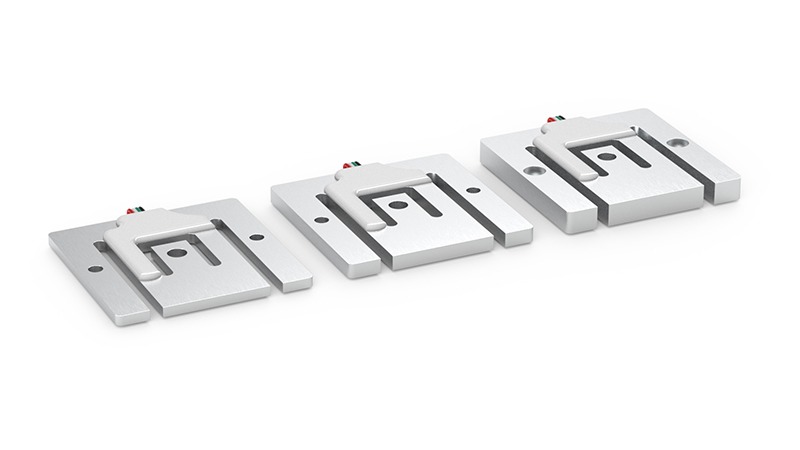

PLP Planar Load Cell
The Laumas PLP is an anodized aluminum planar beam load cell available in capacities of 22 kg, 45 kg, and 110 kg (48.5 lb to 242.5 lb), with OIML R60 C3 certification and IP65 protection. It is designed for high-accuracy platform, postal, and OEM scale applications requiring certified precision in a low-profile format.
PRODUCT DETAILS
The PLP is an anodized aluminum planar beam load cell manufactured to OIML R60 C3 accuracy standards for use in high precision weighing systems. It is designed to be installed at each corner of a scale platform, four cells working together to accurately measure the total load applied anywhere on the platform surface, with the PLP’s planar geometry providing inherent compensation for off-center loads.
The PLP’s rated output connects directly to load cell indicators and amplifiers, and is compatible with 4–20 mA signal conditioners for PLC integration in commercial and industrial weighing systems. An IP65 anodized aluminum body provides reliable protection against dust and light moisture exposure in commercial weighing environments. The PLP’s wide operating temperature range of −35°C to +65°C (−31°F to +149°F) extends its suitability beyond typical indoor commercial scales to outdoor installations and cold-storage facilities. The compensated temperature range of −10°C to +40°C (14°F to 104°F) ensures certified accuracy is maintained across standard indoor commercial operating conditions.
Most Common Applications: Platform and bench scales, postal and courier weighing systems, retail trade scales, medical and pharmacy scales, OEM certified scale manufacturing, check-weighing systems.
| Capacities | 22 kg (48.5 lb), 45 kg (99.2 lb), 110 kg (242.5 lb) |
|---|---|
| Combined Error | ≤ ±0.023% |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 1.0 mV/V ± 0.1% |
| Maximum Excitation | 18 V DC |
| Bridge Resistance | 2085 Ω ± 15 (Input); 1000 Ω ± 10 (Output) |
| Operating Temperature | −35°C to +65°C (−31°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to 104°F) |
| Sealing Standard | IP65 Environmentally Sealed |
| Material | Anodized Aluminum Alloy |
| Protective Coating | Anodized |
