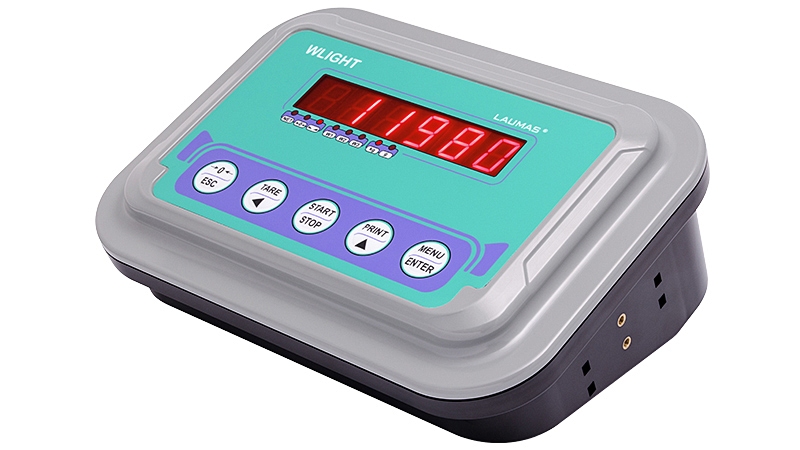

WLIGHT Compact Weight Indicator
The Laumas WLIGHT is a compact ABS weight indicator with a 6-digit red LED display, RS-232 communication via Modbus RTU, NTEP Class III/IIIL approval, and UL recognition for the United States and Canada. Designed for straightforward commercial and light industrial weighing applications where simplicity, portability, and certified accuracy are the primary requirements.
PRODUCT DETAILS

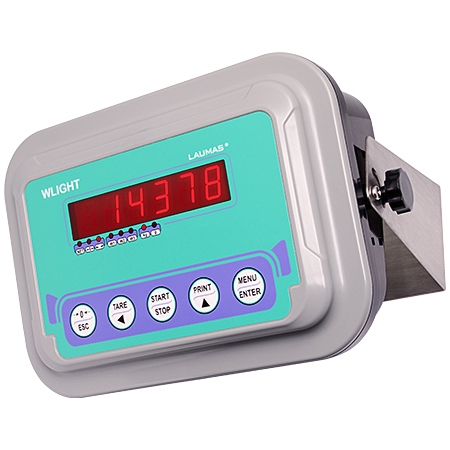

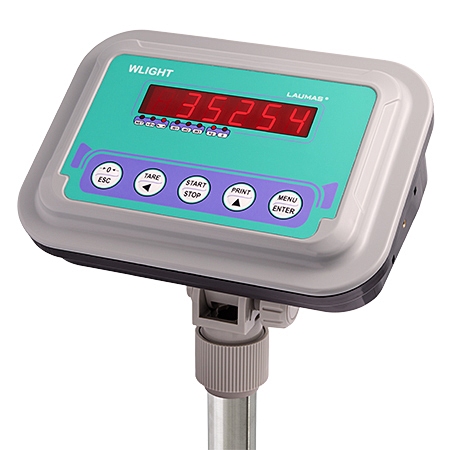

The WLIGHT is a no-frills, practical weight indicator from Laumas designed for installations where a simple, certified, and compact desktop readout is all that is required. Its ABS enclosure installs on a desk, wall, or column using the optional stainless steel bracket or ABS column support, keeping the footprint minimal in space-limited environments such as retail counters, small receiving stations, and laboratory benchtops.
The 6-digit red LED display (20 mm height) with 8 signalling LEDs provides clear, at-a-glance weight readings. RS-232 communication with Modbus RTU, ASCII Laumas, and continuous transmission protocols allows the WLIGHT to connect to printers, PCs, and remote displays – covering the most common peripheral requirements for a simple weighing station.
Up to eight 350 Ω load cells can be connected in parallel via a junction box, supporting a wide range of platform and floor scale configurations. Piece counting and weight totalizing functions extend basic weighing capability for light production and inventory tasks. An optional 8-cell NiMH battery pack (not included) provides approximately 16 hours of portable operation for temporary deployments and field use. Configuration is managed via the front-panel keypad or the free Laumas Instrument Manager PC software. NTEP Class III/IIIL (10,000 divisions) and UL recognition for the United States and Canada provide legal-for-trade coverage in commercial weighing applications.
Most Common Applications: Small commercial platform and bench scales, retail and food service weighing,laboratory process weighing, portable field weighing with optional battery.
| Power Supply | 12 to 24 VDC ±10% 6W |
|---|---|
| Display | 6-digit semi-alphanumeric red LED |
| Enclosure | ABS, IP40 |
| Communications & Output | RS 232 Modbus RTU |
| Load Cell Input | Up to 8 pcs 350 Ω load cells |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 280 x 120 x 200 mm |
| Approvals | NTEP Class III/IIIL, UL Recognized |
