C41N Parallel Connection Junction Box

IMAGES

The Laumas C41N is an ABS IP67 parallel connection junction box for up to 4 load cells, featuring 4+1 M16×1.5 polyamide cable glands and 4+1 PVC end-fittings for sheath, with support for 4/6-wire connections. A simple summing solution for multi-cell scales in light industrial and commercial environments operating from −20°C to +60°C (−4°F to +140°F).

PRODUCT DETAILS

The Laumas C41N is a straightforward, cost-effective passive parallel connection junction box housed in a durable ABS enclosure with IP67 protection. The C41N provides a direct parallel sum of up to 4 load cell signals without individual cell trimming — making it the right choice for applications where load cells are closely matched in sensitivity and a simple, economical interconnection solution is preferred over active equalization.

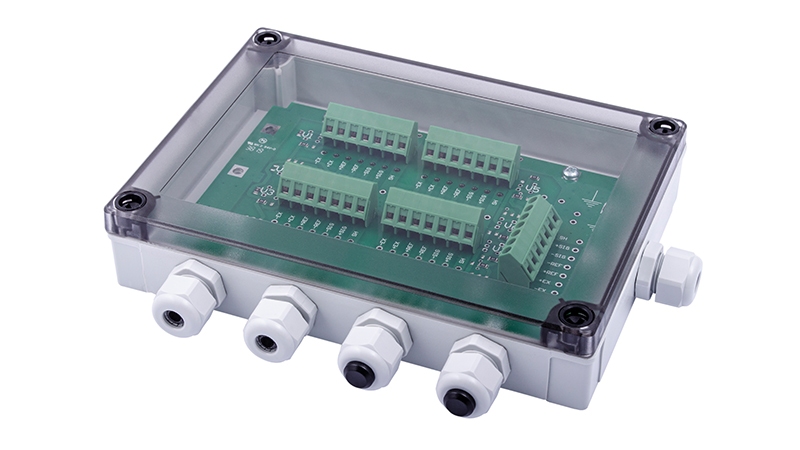

With IP67 sealing against dust ingress and water immersion, the C41N is suited for use in a veriety of commercial environments. Its transparent ABS lid allows visual inspection of wiring and connectors without opening the enclosure. Operating across −20°C to +60°C (−4°F to +140°F).

Most Common Applications: Platform and bench scales, tank and hopper weighing, conveyor scales,OEM multi-cell scale assemblies.

Channels

Number of Load Cells

Up to 4

Input Cable Fittings

C41N: M16 x 1.5 (4+1 polyamide), C41NR: 4+1 PVC sheath fittings

Output Cable Fittings

M16 x 1.5

Enclosure Material

ABS

IP Rating

IP67

Lightning Protection

Dimensions

180 x 130 x 35 mm (7.1 x 5.1 x 1.4 in)

Weight
