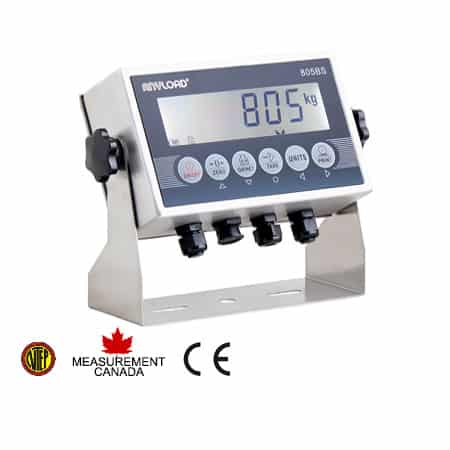

805BS Stainless Steel Weight Indicator
The Anyload 805BS is a stainless steel weight indicator with a 6-digit LCD display, IP66 protection, RS-232 (and optional RS-485) communication, NTEP Class III/IIIL approval, and Measurement Canada Class III/IIIHD certification. It is powered by an internal rechargeable lithium battery, making it suitable for both fixed and portable commercial and industrial weighing applications.
PRODUCT DETAILS
The 805BS is a rugged, certified stainless steel weight indicator designed for commercial and industrial weighing applications where durability, ease of use, and North American legal-for-trade compliance are equally important. Its stainless steel enclosure with IP66 sealing withstands dust, water jets, and the daily abuse of production and commercial environments. A 1-inch (25.4 mm) 6-digit LCD display with 5.6 x 1.6 in (143×41 mm) visible area ensures readability across typical working distances, and built-in functions including Auto Zero Scale, Auto Zero Tracking, PEAK, and piece counting cover the most common operational needs without complex configuration.
The 7.4 V / 4000 mA lithium batter- gives the 805BS the ability to serve as both a fixed indicator in a receiving dock and a portable unit for trade-certified mobile weighing in agriculture, livestock, and field applications. A built-in clock, programmable print format, and two-way relay signal output add utility for documentation and process control. NTEP Class III/IIIL (10,000 divisions) and Measurement Canada Class III (10,000) / IIIHD (20,000) certifications ensure full legal-for-trade coverage across North America.
Most Common Applications: Commercial platform and floor scales, receiving dock and shipping weighing, portable trade and agricultural scales, livestock weighing, retail and food service weighing.
| Power Supply | Rechargeable lithium battery |
|---|---|
| Display | 1 in (25.4 mm) 6-digit LCD |
| Enclosure | Stainless Steel 304, IP66 |
| Communications & Output | RS-232, optional RS-485 |
| Load Cell Input | Up to 8 pcs 350 Ω or 16 pcs 700 Ω load cells |
| Resolution | – |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Dimensions | 8.9 x 3.0 x 7.1 in (226 x 76 x 181 mm) |
| Approvals | NTEP III/IIIL, Measurement Canada III/IIIHD |
