OCSM1 Hanging Crane Scale

IMAGES

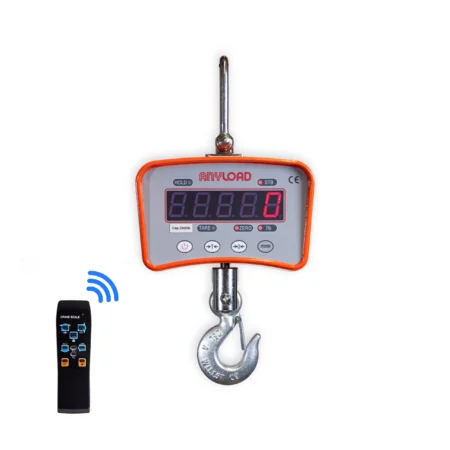

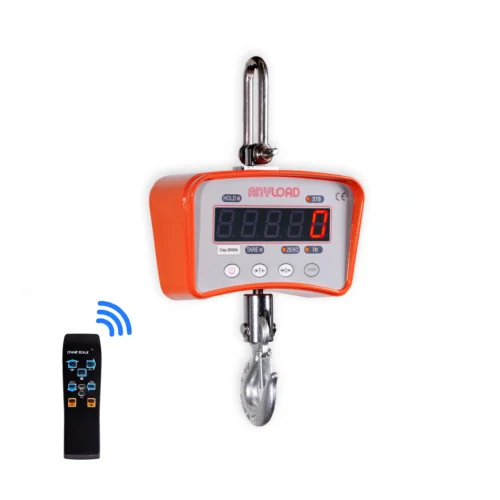

The Anyload OCSM1 is a light-duty hanging crane scale for everyday lifting and weighing from 100 kg (200 lb) up to 1 t (2,000 lb). Its die-cast aluminum body, bright 30 mm (1.2 in) LED display, rotatable hook, and infrared remote control make it a practical choice for warehouses, workshops, and loading docks. Built to OIML R76 Class III accuracy.

PRODUCT DETAILS

The OCSM1 is a compact, light-duty hanging crane scale built for fast, everyday weighing wherever loads are lifted by hook. With capacities from 100 kg (200 lb) to 1 t (2,000 lb), it suits receiving docks, workshops, recycling yards, and warehouse floors where you need a quick, reliable weight before moving a load.

A bright 30 mm (1.2 in) five-digit LED display stays readable from the ground, while the rotatable hook lets the load settle naturally without twisting your sling. Fast resolution switching, HOLD, tare in/tare out, and kg/lb unit switching speed up repetitive weighing, and the bundled infrared remote lets an operator zero, tare, and hold from a safe distance. A rechargeable 6 V / 5 Ah battery delivers around 80 hours of use between charges, and the auto power-off and idle modes stretch that further across a busy shift.

Most Common Applications: Warehouse and loading-dock weighing, workshop and fabrication shops, recycling and scrap handling, agricultural and feed weighing, general material handling.

Capacities

200 lb (91 kg), 400 lb (181 kg), 600 lb (272 kg), 1,000 lb (454 kg), 2,000 lb (907 kg)

Division

0.1 lb to 1 lb

Accuracy Class

OIML R76 Class III (not certified)

Display

5-digit LED, 30 mm (1.2 in)

Enclosure

Die-cast aluminum

Battery

6 V / 5 Ah rechargeable

Operating Time

80 hours

Protection Rating

Working Temperature

-10°C to 40°C (14°F to 104°F)

Remote Control

Yes (infrared)
