DTEZ Portable Hanging Crane Scale

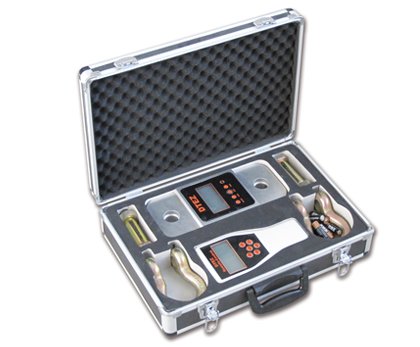

The Laumas DTEZ is a portable digital crane scale for heavy lifting and load testing from 3,000 kg (6,614 lb) to 30,000 kg (66,139 lb). With dual shackle connections, a backlit LCD, IP64 rating, ±0.01% accuracy, and a carry case for lighter models, it suits heavy material handling, rigging, and field weighing.
PRODUCT DETAILS

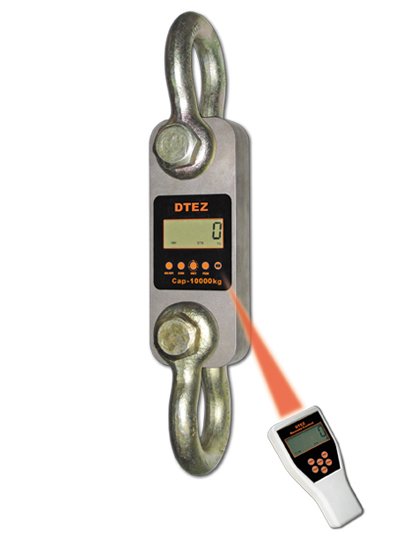

The DTEZ is a portable, high-accuracy digital crane scale built for heavy lifting and in-line load measurement from 3,000 kg (6,614 lb) to 30,000 kg (66,139 lb). High-resistance aluminum alloy is used on the 3,000–5,000 kg models and steel on the 10,000–30,000 kg models, and both connect through upper and lower shackles for crane, hoist, and pull-test work.
A backlit five-digit LCD with ten signalling symbols keeps readings clear in the field, and peak display, totalizing, semi-automatic tare, and unit switching across kg, t, N, kN, and lb make it flexible for both weighing and force tasks. IP64 sealing and a tight ±0.01% of full-scale accuracy suit demanding heavy work, while three AA batteries give around 50 hours of runtime. An aluminum carry case is included on 3,000–10,000 kg models, with an optional hook and a 15 m (49 ft) remote control available on request.
Most Common Applications: Heavy material handling and overhead weighing, crane and hoist load testing, rigging and lifting force measurement, portable field and site weighing, proof-load and pull testing.
| Capacities | 3,000 kg (6,614 lb), 5,000 kg (11,023 lb), 10,000 kg (22,046 lb), 20,000 kg (44,092 lb), 30,000 kg (66,139 lb) |
|---|---|
| Division | 1 kg (2.2 lb) to 10 kg (22 lb) |
| Accuracy Class | ±0.01% of full scale |
| Display | 5-digit backlit LCD, 25 mm |
| Enclosure | Aluminum alloy (3,000–5,000 kg) / steel (10,000–30,000 kg) |
| Battery | 3 x 1.5 V AA |
| Operating Time | 50 hours |
| Protection Rating | IP64 |
| Working Temperature | -10°C to +40°C (14°F to 104°F) |
| Remote Control | Optional (up to 15 m / 49 ft) |
