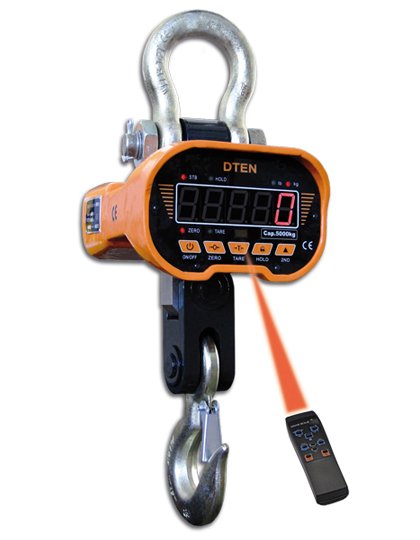

DTEN Hanging Crane Scale
The Laumas DTEN is a versatile die-cast aluminum digital crane scale spanning 500 kg (1,102 lb) to 20,000 kg (44,092 lb), built for bridge-crane and overhead weighing. A 30 mm red LED display, swivel hook, IP64 rating, totalizing functions, and battery life up to 140 hours make it a workhorse across a wide capacity range.
PRODUCT DETAILS
The DTEN is a versatile digital crane scale covering one of the widest single-model ranges available, from 500 kg (1,102 lb) up to 20,000 kg (44,092 lb). Its die-cast aluminum construction and suitability for bridge cranes make it a dependable workhorse across Original Equipment Manufacturer (Original Equipment Manufacturer (OEM)), warehousing, fabrication, and heavy material-handling operations.
A 30 mm semi-alphanumeric red LED display with brightness control keeps readings clear from the floor, and the swivel hook lets loads settle without twisting. HOLD, semi-automatic and preset tare, weighed-value totalizing, and overload-count storage support production weighing, while IP64 sealing handles dusty, splash-prone environments. Rechargeable batteries deliver 80 hours on the 500–1,000 kg models and up to 140 hours on the 3,000–20,000 kg models, with a 230 VAC charger included and a remote control effective to 10 m (33 ft). Accuracy is ±0.03% of full scale.
Most Common Applications: Bridge-crane and overhead weighing, Original Equipment Manufacturer (Original Equipment Manufacturer (OEM)) and process lines, warehouse and freight handling, heavy material handling, fabrication and assembly operations.
| Capacities | 500 kg (1,102 lb), 1,000 kg (2,205 lb), 3,000 kg (6,614 lb), 5,000 kg (11,023 lb), 10,000 kg (22,046 lb), 20,000 kg (44,092 lb) |
|---|---|
| Division | 0.1 kg (0.22 lb) to 5 kg (11 lb) |
| Accuracy Class | ±0.03% of full scale |
| Display | 5-digit red LED, 30 mm |
| Enclosure | Die-cast aluminum |
| Battery | 6 V rechargeable, 5 Ah (500–1,000 kg) / 10 Ah (3,000–20,000 kg) |
| Operating Time | 80 hours (500–1,000 kg) / 140 hours (3,000–20,000 kg) |
| Protection Rating | IP64 |
| Working Temperature | -10°C to +40°C (14°F to 104°F) |
| Remote Control | Yes (up to 10 m / 33 ft) |
