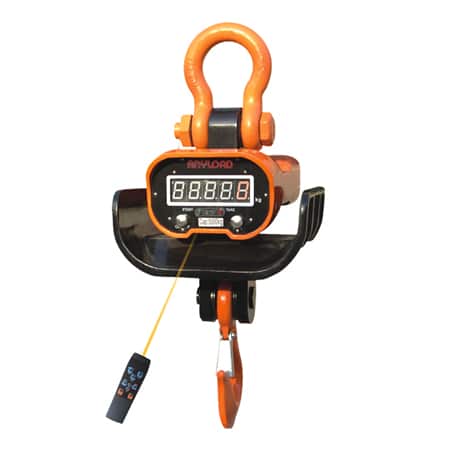

The Anyload OCSG1 is a heat-resistant hanging crane scale rated 6,000 lb to 30,000 lb, engineered for hot, radiant environments such as foundries and steel mills. A protective heat shield, heavy-duty bow shackle and eye hook, 30 mm LED display, and infrared remote let it weigh near molten metal and hot castings with OIML Class III accuracy.
When the work happens next to molten metal, an ordinary crane scale will not last. The OCSG1 is a heat-resistant hanging crane scale purpose-built for foundries, steel mills, and forging shops, weighing loads from 6,000 lb to 30,000 lb in radiant, high-temperature environments.
A protective shield guards the electronics from radiant heat, while a heavy-duty bow shackle and eye hook carry hot ladles, castings, and billets on the crane. The 30 mm five-digit LED display reads clearly through smoke and glare, and OIML Class III accuracy keeps measurements trustworthy for process and billing. Fast resolution switching, HOLD, tare in/tare out, an auto overload alarm, the bundled infrared remote, and a rechargeable 6 V / 10 Ah battery (around 100 hours per charge) round out a scale made for the hot end of the plant.
Most Common Applications: Foundry ladle and casting weighing, steel mill and rolling operations, forging and heat-treatment shops, hot-metal material handling, high-temperature overhead crane weighing.
| Capacities | 6,000 lb (2,722 kg), 10,000 lb (4,536 kg), 20,000 lb (9,072 kg), 30,000 lb (13,608 kg) |
|---|---|
| Division | 2 lb to 10 lb |
| Accuracy Class | OIML Class III |
| Display | 5-digit LED, 30 mm |
| Enclosure | Die-cast aluminum |
| Battery | 6 V / 10 Ah rechargeable |
| Operating Time | 100 hours |
| Protection Rating | – |
| Working Temperature | 1000°C (1832°F) at distance 1200mm (47.24in), 1200°C (2192°F) at distance 1500mm (59.05in), 1400°C (2552°F) at distance 1800mm (70.86in), 1600°C (2912°F) at distance 2000mm (78.74in) |
| Remote Control | Yes (infrared) |
