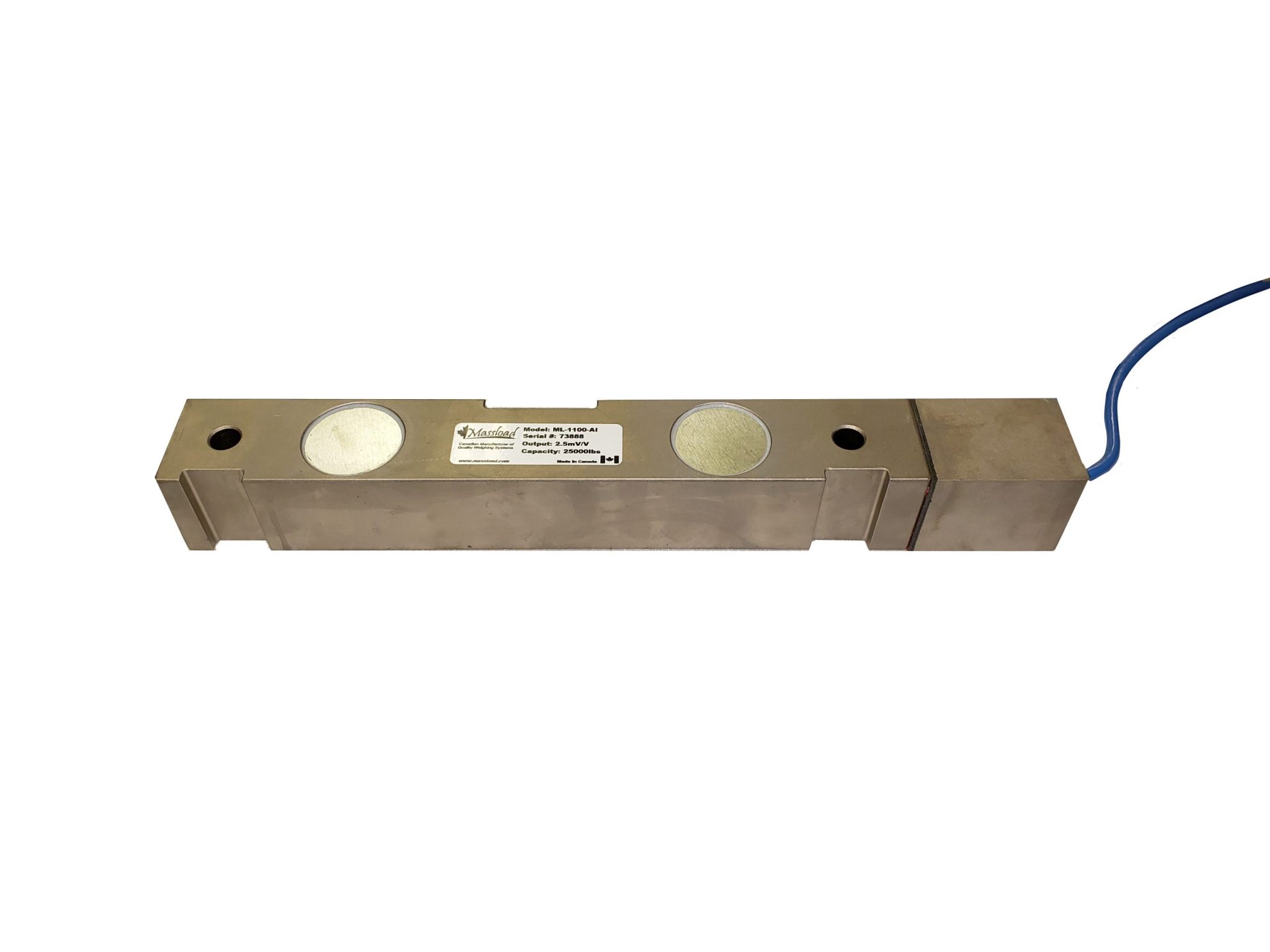

Massload ML 1100 25K AI Double-Ended Shear Beam Load Cell
The Massload ML 1100 25K AI is a small-envelope 25,000 lb (11,340 kg) double-ended shear beam load cell for wire rope dead-end load sensing. It is manufactured and tested in Canada at Massload’s VCAP-certified facility.
PRODUCT DETAILS
The ML 1100 25K AI is a small-envelope version of Massload’s ML 1100 double-ended shear beam load cell, developed for wire rope dead-end load sensing where installation space is limited.
Rated at 25,000 lb (11,340 kg), it is the sensing element used in dead-end cable tension monitoring, reading line tension at a fixed wire rope dead end. Typical applications include oilfield wireline tension measurement and other cable tension monitoring applications where tension is tracked continuously as a safe overload indication.
This load cell is design intended for rugged service and dynamic loading, sealed to IP67 and rated for operation from -40°C to +80°C (-40°F to +176°F). The ML 1100 25K AI is manufactured and tested at Massload’s VCAP-certified facility in Saskatoon, Saskatchewan.
Most Common Applications: Wire rope dead-end load sensing, cable tension monitoring, safe overload indication.
| Capacities | 25,000 lb (11,340 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | ±0.10% FS |
| Safe Overload | 150% full scale |
| Ultimate Overload | 300% full scale |
| Full Scale Output | 2.5 mV/V ±0.25% FS |
| Maximum Excitation | 15 VDC |
| Input Resistance | 700 Ω |
| Output Resistance | 700 Ω |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Compensated Temperature | -10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP67 |
| Material | 4140, 4340 Alloy Steel |
| Protective Coating | Electroless nickel |
