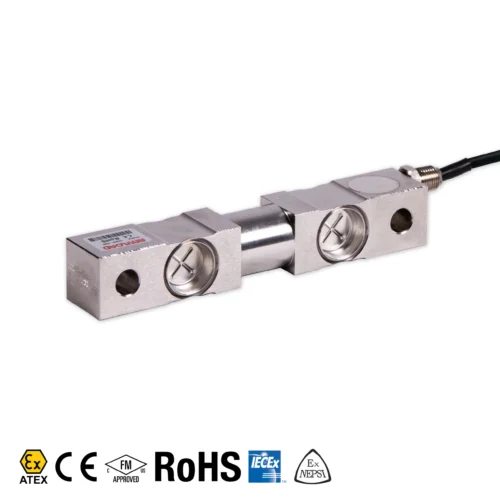

102ES Double-Ended Shear Beam Load Cell
The Anyload 102ES is a 17-4 PH stainless steel double-ended shear beam load cell available in capacities from 2,500 lb to 75,000 lb (1,134 to 34,019 kg) with a welded hermetic IP68 seal and a full scale output of 3.0 mV/V ±0.25%. Designed for corrosive and wash-down environments across a wide capacity range, with ATEX, FM, and IECEx certified versions available.
PRODUCT DETAILS
The 102ES is Anyload’s low-to-mid capacity 17-4 PH stainless steel double-ended shear beam load cell, combining the superior corrosion resistance of 17-4 PH precipitation hardening stainless with a hermetically welded IP68 seal. Available from 2,500 lb to 75,000 lb (1,134 to 34,019 kg), the 102ES covers a broad capacity range for food, pharmaceutical, and chemical processing platform and truck scale applications. Full scale output is 3.0 mV/V ±0.25% with repeatability, hysteresis, and creep all below ±0.030%, and non-linearity below ±0.050%. Compensated temperature range is -10°C to +50°C (14°F to 122°F). Cable is 10 m for capacity ≤ 35,000 lb and 18 m for capacity ≥ 50,000 lb. ATEX, FM, and IECEx approved versions carry the “-Ex” suffix.
Most Common Applications: Food processing and pharmaceutical platform scales, chemical tank and vessel weighing, wash-down industrial floor scales, stainless steel truck scale applications.
| Capacities | 2,500 lb (1,134 kg), 5,000 lb (2,268 kg), 10,000 lb (4,536 kg), 15,000 lb (6,804 kg), 25,000 lb (11,340 kg), 35,000 lb (15,876 kg), 50,000 lb (22,680 kg), 60,000 lb (27,216 kg), 75,000 lb (34,019 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.050% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 3.0 mV/V ±0.25% |
| Maximum Excitation | 15 VDC |
| Input Resistance | 700 Ω ±10 |
| Output Resistance | 700 Ω ±5 |
| Operating Temperature | –30°C to 70°C (-20°F to 160°F) |
| Compensated Temperature | −10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP68 |
| Material | 17-4 PH Stainless Steel |
| Protective Coating | – |
