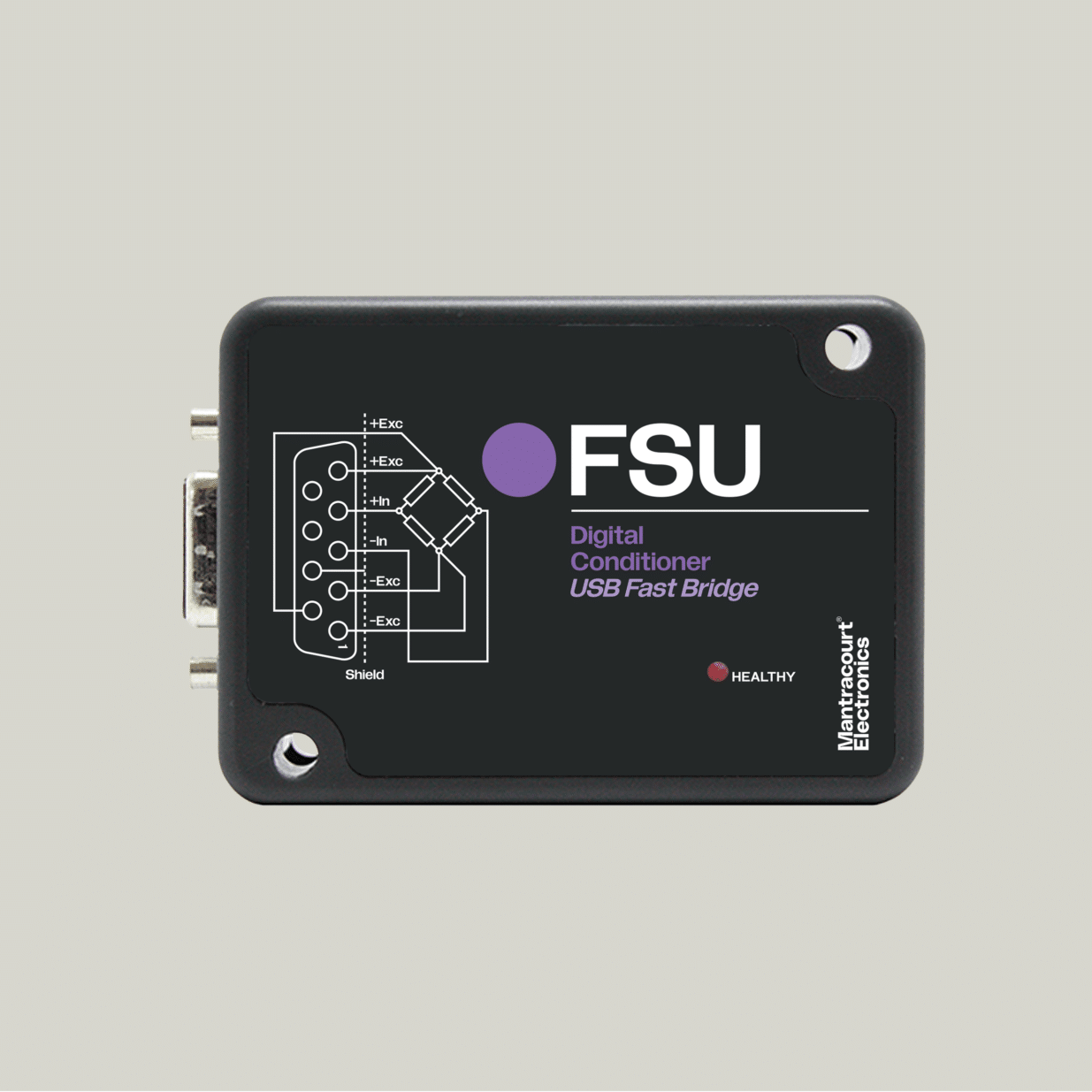

FSU-SSB High-Speed USB Strain Gauge Signal Conditioner

IMAGES

The Mantracourt FSU-SSB is a fast, high-precision USB strain bridge input module delivering 4,800 samples per second at 13-bit noise-free resolution. Powered via USB with no external supply required, it is built for dynamic applications including impact testing, vibration analysis, torque measurement, and drop testing.

PRODUCT DETAILS

The FSU-SSB is the choice when high sampling rate matters. At 4,800 samples per second, it captures transient force events, impact loads, vibration signatures, and dynamic torque that lower sampling rate instruments miss entirely.

The FSU Toolkit software provides a real-time oscilloscope view for waveform visualization, FFT frequency analysis from 1 Hz to 2 kHz, a data review pane for up to 30 minutes of captured data (8.64 million data points), and two-point calibration. This makes the FSU-SSB indispensable in materials testing labs, suspension and crash testing, machine health monitoring, non-rotational torque verification, and any application where the dynamic behavior of a loaded structure must be understood. Original Equipment Manufacturer (OEM)-level calibration can be saved, locked, and restored for security of setup in production test equipment.

Output Signal
Power Supply

Bridge Sensitivity

5 VDC (USB)

Bridge Excitation

3 mV/V

Input Range

5 VDC

Linearity

Operating Temperature

25 ppm of FR

IP Rating

-40°C to +85°C (-40°F to +185°F)

Enclosure Material

IP50

Dimensions

ABS
