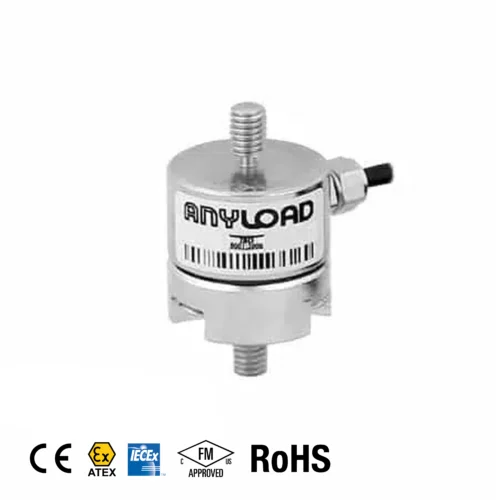

247BS Miniature Stainless Steel Load Button
The Anyload 247BS is a miniature 17-4PH stainless steel load button force sensor available in capacities of 30 kg, 50 kg, and 100 kg (66.14 lb to 220.46 lb), rated IP66 and RoHS compliant with FM-approved hazardous-area options. Its compact dual-threaded stud design supports both tension and compression measurement in confined spaces, making it a trusted choice for medical equipment, automotive testing, and industrial automation systems.
PRODUCT DETAILS
The 247BS is a high-performance miniature load button force transducer built from premium 17-4PH stainless steel for precision tension and compression measurement in environments where space and weight are critical constraints. The compact body with threaded button heads allows direct integration into machine frames, actuators, robotic tooling, and mechanical fixtures, enabling accurate axial force measurement without requiring significant redesign of surrounding equipment. IP66 environmental sealing and corrosion-resistant stainless steel construction ensure long-term reliability in industrial washdown environments, medical devices, and demanding outdoor applications.
The 247BS is widely used in medical weighing equipment, automotive testing systems, servo press monitoring, robotic end-of-arm tooling, and automated assembly verification, where a compact, high-accuracy force sensor is essential. Its wide service temperature range of −30°C to 70°C (−22°F to 158°F) makes it suitable for demanding temperature environments found in industrial automation and outdoor testing applications. When paired with signal conditioners, amplifiers, or data acquisition systems, it integrates seamlessly into complete force measurement solutions for OEM equipment manufacturers, R&D laboratories, and manufacturing quality control systems.
Most Common Applications: Medical weighing and rehabilitation equipment, automotive test rigs, servo press monitoring, robotic force feedback, automated assembly validation, structural load testing, OEM force measurement integration.
| Capacities | 30 kg (66.14 lb), 50 kg (110.23 lb), 100 kg (220.46 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.3% |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 1.0 mV/V ±20% |
| Maximum Excitation | 15V DC |
| Input Resistance | Input: 375 Ω ±25 |
| Output Resistance | Output: 350 Ω ±3 |
| Operating Temperature | –30°C to 70°C/-20°F to 160°F |
| Compensated Temperature | -10°C to 50°C (14°F to 122°F) |
| Sealing Standard | IP66 |
| Material | 17-4PH Stainless Steel |
| Protective Coating | – |
