A2P Analog Signal Conditioner

IMAGES

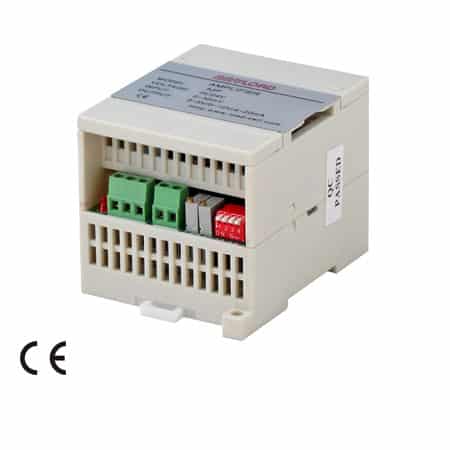

The Anyload A2P is a DIN rail analog signal conditioner supporting one to two 350 Ohms load cells directly or up to 8 pcs 350 Ohms load cells (A2P-D2) or up to 8 pcs 700 Ohms load cells (A2P) via a junction box, with selectable 5 V or 12 V excitation and outputs of 0-10 V or 0 to +/-10 V or 4-20 mA. Featuring anti-EFT interference protection, it operates on 24 V DC and covers -10°C to +50°C (14°F to 122°F) for indoor standard rail channel applications.

PRODUCT DETAILS

The A2P is a DIN rail-mounted analog signal conditioner offering dual load cell inputs and broad excitation voltage options – 5 V or 12 V – to accommodate the widest range of commercial load cells. Its anti-EFT (Electrical Fast Transient) and anti-radiation interference design makes it resilient in electrically noisy industrial panel environments where contactors, VFDs, and power electronics generate significant interference.

The A2P suits panel-mounted process weighing systems in food and beverage production, chemical batching, dispensing, and general Original Equipment Manufacturer (Original Equipment Manufacturer (OEM)) where the amplifier resides inside a control cabinet on a standard DIN rail. Connecting 1 or 2 load cells directly – or up to 8 cells via a junction box – gives it flexibility for single-point bench scales, multi-cell platform scales, and silo/hopper systems. Multiple gain ranges are switch-selectable on the board, allowing calibration to the sensor sensitivity without external potentiometers.

Output Signal

0-10 VDC or 0 to +/- 10 VDC (A2P-D2) or 4-20 mA

Power Supply

24 VDC

Bridge Sensitivity

Bridge Excitation

5 V or 12 VDC

Input Range

0 to 30 mV (A2P) 0 to 36 mV (A2P-D2)

Linearity

≤0.02%

Operating Temperature

-10°C to +50°C (14°F to 122°F)

IP Rating

IP40

Enclosure Material

PVC casting

Dimensions

71 mm x 100 mm x 67.2 mm (2.8″ x 3.9″ x 2.6″)
