A2A-D2 Analog Signal Conditioner

IMAGES

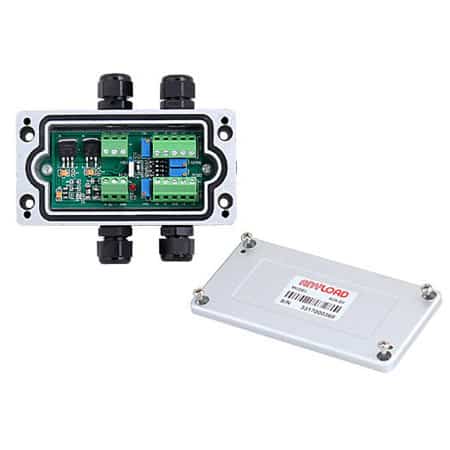

The Anyload A2A-D2 is a compact IP66 aluminium analog signal conditioner driving one or two 350 Ohms load cells directly or up to 8 pcs 350 Ohms cells via a junction box, with selectable 5 V or 12 V excitation and a 0 to +/-10 V or 4-20 mA output. Equipped with a preinstalled GOREÂ breather vent and capacitive stainless steel screws, it is built for rugged outdoor and field-mounted process weighing applications.

PRODUCT DETAILS

The A2A-D2 is a field-hardened analog signal conditioner that takes the dual-input capability of a standard two-channel amplifier and packages it in a compact IP66 aluminium casting with capacitive stainless steel screws and a preinstalled GOREÂ breather vent. The breather vent equalizes pressure inside the housing without allowing moisture ingress – a critical feature for enclosures subjected to temperature cycling in outdoor or exposed industrial locations.

The A2A-D2 is suited for field-mounted weighing systems including outdoor silo and hopper installations, vehicle on-board weighing, construction site load monitoring, conveyor belt tension measurement, and marine force measurement. Its selectable 5 V or 12 V excitation and dual-input architecture make it interchangeable across a wide range of standard load cell types and multi-cell configurations.

Output Signal

0 to +/-10 VDC or 4-20 mA

Power Supply

24 V DC ±20%

Bridge Sensitivity

Bridge Excitation

5 V or 12 VDC

Input Range

0 to 36 mV

Linearity

≤0.02%

Operating Temperature

-10°C to +50°C (14°F to 122°F)

IP Rating

IP66

Enclosure Material

Aluminium casting

Dimensions

127 mm x 102 mm x 29 mm (5.0″ x 4.0″ x 1.1″)
