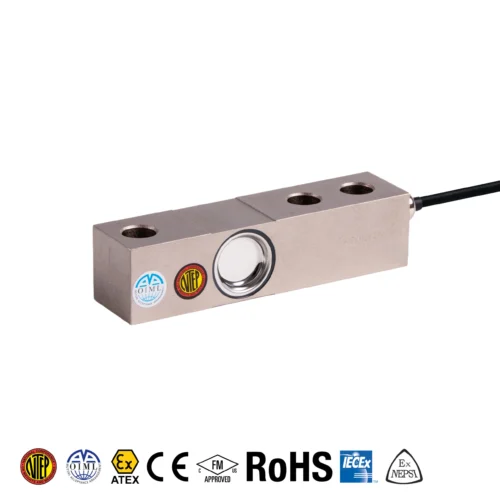

563YH-23 Single-Ended Shear Beam Load Cell
The Anyload 563YH-23 is an industry-standard nickel plated alloy steel single-ended shear beam load cell available in capacities from 250 lb to 20,000 lb with IP67 protection, NTEP and OIML certifications, and ATEX/FM/IECEx options. Directly interchangeable with many competing products, it is the go-to choice for floor scales, platform scales, and tank and hopper weighing across North American and global markets.
PRODUCT DETAILS
| Capacities | 250 lb (113.40 kg), 500 lb (226.80 kg), 750 lb (340.19 kg), 1,000 lb (453.59 kg), 1,500 lb (680.39 kg), 2,000 lb (907.18 kg), 2,500 lb (1,133.98 kg), 3,000 lb (1,360.78 kg), 4,000 lb (1,814.37 kg), SE5,000 lb (2,267.96 kg), 5,000 lb (2,267.96 kg), 10,000 lb (4,535.92 kg), 15,000 lb (6,803.89 kg), 20,000 lb (9,071.85 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.03% (?750 lb); 750 lb) |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 3.0 mV/V ±0.25% |
| Maximum Excitation | 15 V DC |
| Input Bridge Resistance | 350 ? ±7 |
| Output Bridge Resistance | 350 ? ±3 |
| Operating Temperature | -30°C to 70°C (-20°F to 160°F) |
| Compensated Temperature | ?10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP67 |
| Material | Alloy Steel |
| Protective Coating | Nickel Plated |
