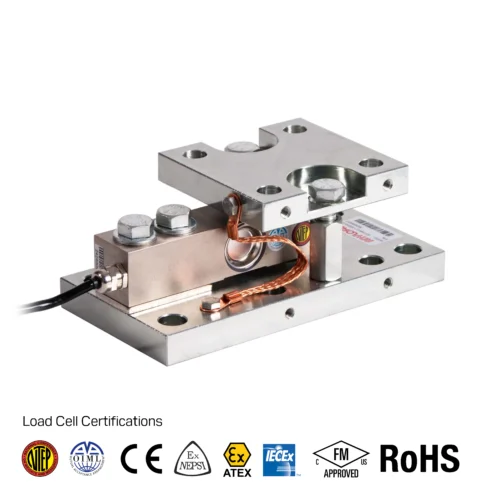

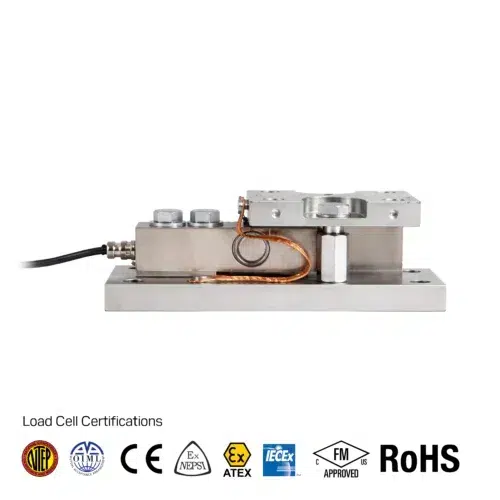

563YHM4-02 Weigh Module for Single-Ended Beam Load Cells
The Anyload 563YHM4-02 is an alloy steel weigh module for 563YH series shear beam load cells, available in capacities from 100 lb to 20,000 lb. It features low profile, integral jacking for easy load cell removal, a rocker pin design for 360° thermal expansion compnesation, uplift and overload protection, and versatile mounting options for tank and vessel legs.
PRODUCT DETAILS
The 563YHM4-02 is an advanced alloy steel weigh module for shear beam load cells in tank, vessel, and heavy industrial weighing systems from 100 lb to 20,000 lb. The integral jacking feature allows the load cell to be lifted out of the module without disturbing the tank or vessel structure — dramatically simplifying maintenance and replacement in the field without system downtime.
The rocker pin design allows 360° thermal expansion and contraction of the weighed structure without transmitting bending forces to the load cell, ensuring long-term accuracy in temperature-variable environments. Both uplift and overload protection are built in, along with lateral stops to prevent horizontal displacement. Versatile mounting options allow installation in existing 4-hole square tank leg mounts, and the module can be rotated 360° or flipped 180° using the same mounting holes to suit various installation geometries.
Most Common Applications: Industrial tank and vessel weighing, silo scales, hopper weighing, heavy platform scales, process industry multi-leg weighing structures.
| Capacities | 563YHM4-(0.1-SE5)Klb-02: 100 lb to SE5,000 lb (45 kg to 2,268 kg); 563YHM4-(5-10)Klb-02: 5,000 lb to 10,000 lb (2,268 kg to 4,536 kg); 563YHM4-(15-20)Klb-02: 15,000 lb to 20,000 lb (6,804 kg to 9,072 kg) |
|---|---|
| Material | Alloy Steel |
