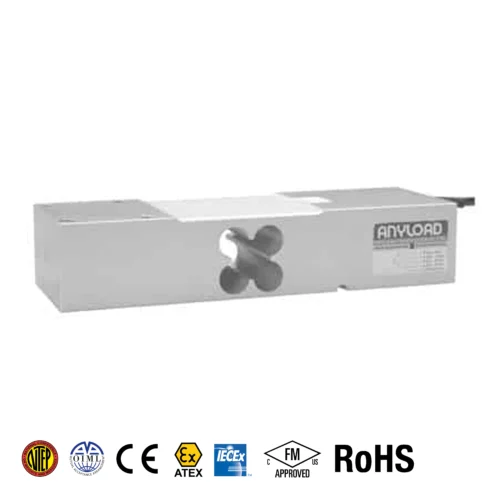

108HA / 108HAUN Single Point Load Cell
The Anyload 108HAUN is an aluminum single-point load cell available in capacities from 50 kg to 1,000 kg/1t, with OIML MAA C6/C4 and NTEP Class III certification and
IP66 protection for reliable off-center load performance in mid-to-high capacity commercial applications with a 550—600 mm or 21.65 x 23.62 inches platform. It features UNC imperial threading for North American installations.
PRODUCT DETAILS
The 108HAUN is a robust mid-to-high capacity aluminum single-point load cell offering NTEP 1:5000 (50 to 250 kg) Class III and NTEP 1:4000 (635 kg to 1,000 kg / 1t) Class III and OIML MAA C6/C4 legal-for-trade accuracy in capacities from 50 kg up to 1,000 kg, with a 550—600 mm or 21.65 x 23.62 inches platform reference. The UNC imperial thread version makes it uniquely adaptable for scale manufacturers and integrators working to North American standards. With a 2.0 mV/V output, IP66 sealing, and 150% safe overload rating, the 108HAUN provides dependable, accurate service in demanding industrial floor scale, bench scale, and conveyor scale applications where off-center loading is a regular occurrence. ATEX, FM, and IECEx versions are available for hazardous environments.
Most Common Applications: Industrial floor scales, heavy-duty bench scales, conveyor scales, platform scales, OEM mid-to-high capacity scale manufacturing.
| Capacities | 50 kg (110.23 lb), 100 kg (220.46 lb), 250 kg (551.16 lb), 635 kg (1,399.91 lb), 1,000 kg (2,204.62 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.017% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±0.25% |
| Maximum Excitation | 15 V DC |
| Bridge Resistance | 350 Ω ±3 |
| Operating Temperature | −18°C to +65°C (−0.4°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
