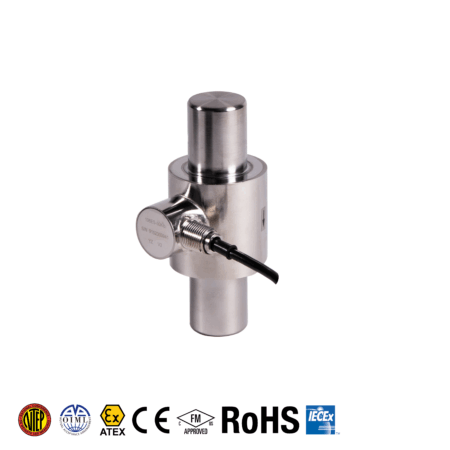

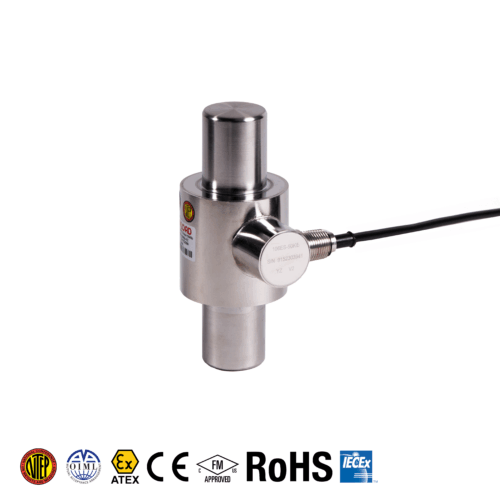

106ES-YZ Stainless Steel Canister Load Cell
The Anyload 106ES-YZ is a 2Cr13 stainless steel canister load cell available in 50,000 lb and 100,000 lb (22,680 kg and 45,360 kg) capacities, with NTEP Class IIIL and OIML MAA C3 certification, IP68 welded seal, and FM approval (on request). Designed for high-capacity industrial and commercial compression weighing including hopper, tank, and platform scales.
PRODUCT DETAILS
The 106ES-YZ is a high-capacity 2Cr13 stainless steel canister load cell engineered for certified legal-for-trade compression weighing in industrial hopper, tank, silo, and platform scale applications at 50,000 lb and 100,000 lb (22,680 kg and 45,360 kg) capacity. NTEP Class IIIL and OIML MAA C3 dual certification supports legal-for-trade use in both North American and international commercial weighing applications. IP68 welded stainless steel sealing provides full protection against immersion and washdown in demanding industrial environments.
The 106ES connects directly to load cell indicators and amplifiers, and is compatible with 4–20 mA signal conditioners for PLC integration. The 2 mV/V ± 1% millivolt/volt output and compensated temperature range of −10°C to 50°C (14°F to 122°F) ensure stable and accurate measurement across indoor and outdoor industrial temperature conditions. ATEX and IECEx versions are available upon request for hazardous-area applications.
M106ES 2Cr13 stainless steel mounting cap acessory is available separately.
Most Common Applications: High-capacity industrial hopper and tank weighing, platform and floor scale compression weighing, silo and bulk storage vessel weighing, hydraulic and structural compression force testing.
| Capacities | 50,000 lb (22,680 kg), 100,000 lb (45,360 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.030% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ± 1% |
| Maximum Excitation | 10 V DC (15 V Maximum) |
| Bridge Resistance | 1100 Ω ± 50 (Input); 1000 Ω ± 10 (Output) |
| Operating Temperature | – |
| Compensated Temperature | −10°C to 50°C (14°F to 122°F) |
| Sealing Standard | IP68 Welded Seal |
| Material | 2Cr13 Stainless Steel |
| Protective Coating | None (bare stainless steel) |
