WINOX-G & WINOX-2G Stainless Steel Graphic Weighing & Batching Indicator

WINOX-G & WINOX-2G Stainless Steel Graphic Weighing & Batching Indicator

IMAGES

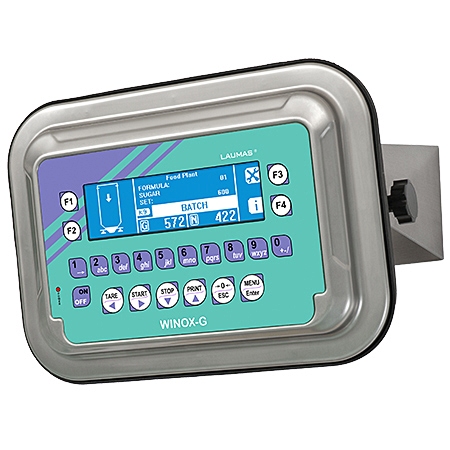

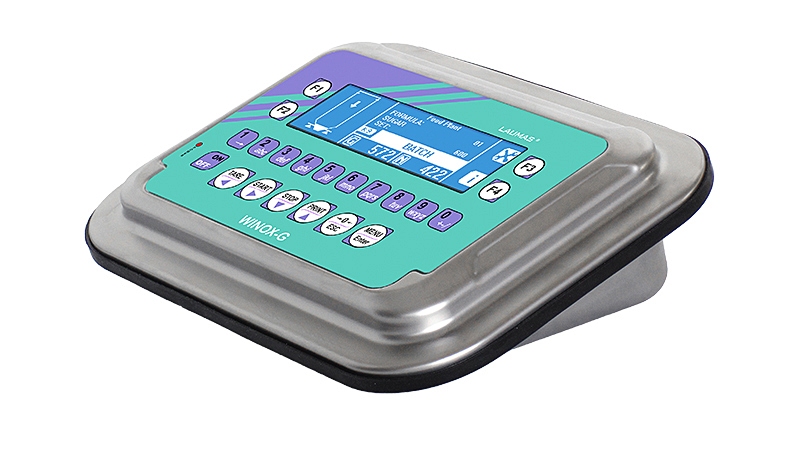

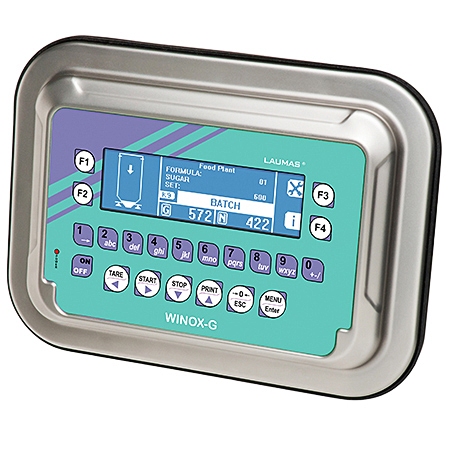

The Laumas WINOX-G and WINOX-2G are AISI 304 stainless steel weight indicators and batching controllers with a backlit LCD graphic display (240×64 pixels and 240×128 pixels), multilanguage software, IP68 protection, NTEP Class III/IIIL approval, and UL recognition for the United States and Canada. Its graphic interface with multiple display modes, piece counting, and statistical prepackage checking makes it ideal for advanced process weighing and batching applications.

Model

Clear

ADD TO QUOTE

PRODUCT DETAILS

The WINOX-G and WINOX-2G elevate the WINOX stainless steel indicator line with a backlit LCD graphic display (240×64 pixels, visible area 133×39 mm & 240×128 pixels, visible area 128x75mm) and multilanguage software supporting four languages plus one customizable language – making it the choice for international production sites and facilities requiring multi-language operator interfaces.

The graphic display enables advanced display modes unavailable on LED indicators: piece counter views, totalizer screens, batching progress visualization, and statistical prepackage checking compliant with trade regulations. A 99-item database with preset tares, setpoints, and weight thresholds in the BASE program supports sophisticated check-weighing and catch-weighing applications for prepackaged goods. The batching programs add graphical load status representation, production storage, product stock management, and consumption tracking across up to 99 formulas – covering complex multi-ingredient batching in food, chemical, and production.

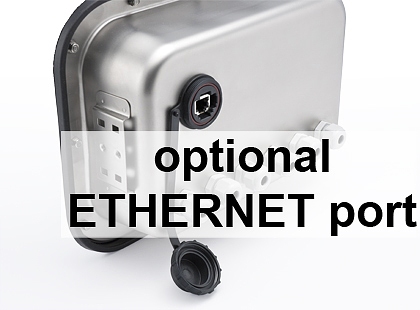

All optional fieldbuses – WiFi, CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, and Modbus/TCP – are available. The IP68 stainless steel enclosure in P, Q, D, or ATEX versions adapts to wall, desk, column, and front-panel installations. NTEP Class III/IIIL and UL recognition for the United States and Canada ensure certified legal-for-trade accuracy.

Most Common Applications: Statistical prepackage checking, multi-language production batching, advanced check-weighing, inventory and stock management, automated filling and dosing with graphical operator interface.

Specifications
Documents & Drawings

Power Supply	12 to 24 VDC ±10% 6W
Display	Backlit LCD graphic display
Enclosure	AISI 304 stainless steel, IP68 (P, Q and X versions)

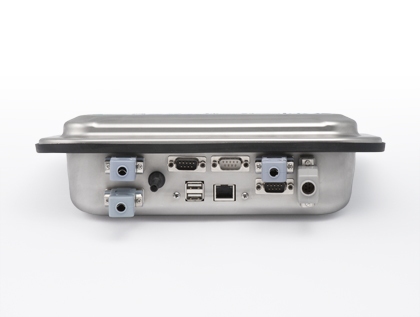

Communications & Output	RS485 and RS232 Modbus RTU, optional WiFi (2.4 GHz), CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, Modbus/TCP, 0-20mA, 4-20mA, 0-10V, 0-5V, +/-10V, +/-5V
Load Cell Input	Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20mA input
Resolution	±999,999 divisions
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions	286 x 206 x 108 mm, with bracket: 290 x 206 x 187 mm (P version)
Approvals	NTEP Class III/IIIL, UL Recognized
