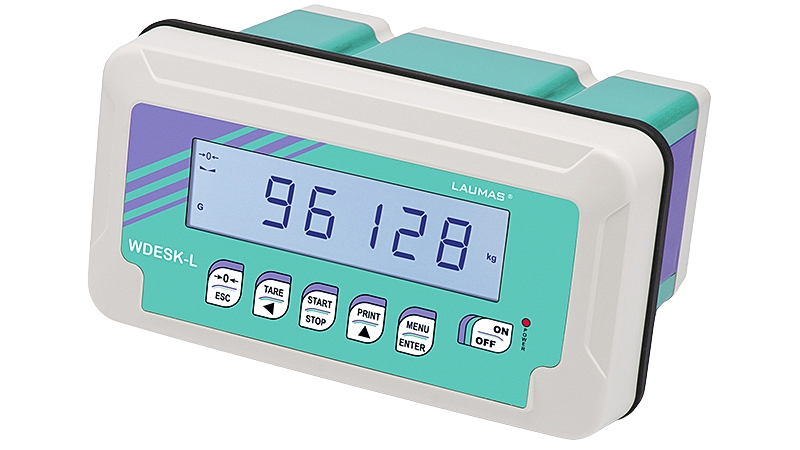

WDESK-L Desktop Weighing & Batching Indicator
The Laumas WDESK-L is a versatile ABS desktop weight indicator and batching controller with a 6-digit backlit LCD, IP67 protection, RS-485/RS-232 and optional WiFi and fieldbus communications and NTEP Class III/IIIL approval. Available in BASE, LOAD, UNLOAD, 3/6/14 PRODUCTS, and Multiprogram versions for flexible deployment in weighing and automated batching environments.
PRODUCT DETAILS

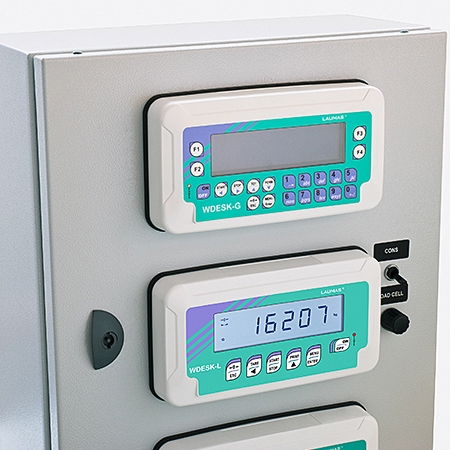

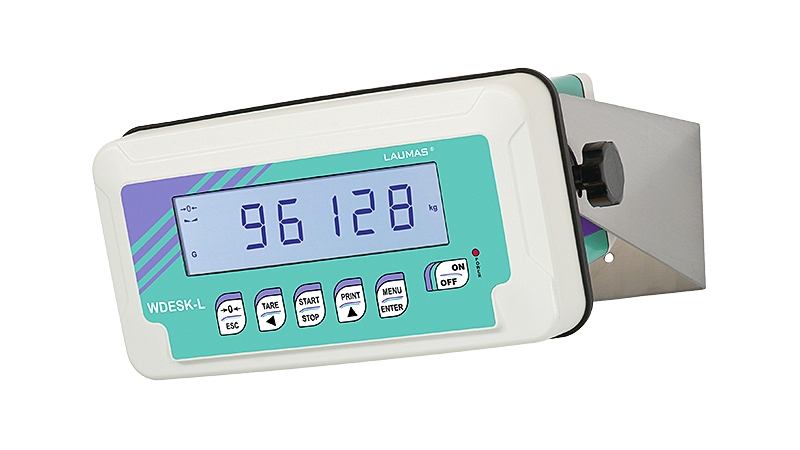

The WDESK-L is a compact, versatile desktop weight indicator and batching controller that bridges the gap between DIN-mounted indicators. Its ABS enclosure with IP67 protection is suitable for desk, wall, column, and front-panel mounting, covering a broad range of installation scenarios from laboratory benchtops to light industrial control rooms. The 6-digit backlit LCD display with 46 signalling symbols provides clear, information-rich readings.
An optional WiFi module enables remote supervision, management and control of the indicator via web server – valuable for process lines where the indicator is not easily accessible. The WDESK-L supports a comprehensive suite of batching programs, including 99 settable formulas, automatic fall calculation, tolerance error control, precision batching, and consumption storage. Piece counting and weight totalizing in the BASE program extend its usefulness beyond pure batching into check-weighing and inventory management. A battery option providing 16 hours of portable operation makes it suitable for temporary installations and field inspections. NTEP Class III/IIIL and UL recognition support certified legal-for-trade use in North American markets.
Most Common Applications: Bench and desktop weighing stations, batching and filling, check-weighing and inventory control.
| Power Supply | 12 to 24 VDC ±10% 6W |
|---|---|
| Display | 6-digit semi-alphanumeric backlit LCD |
| Enclosure | ABS, IP67 |
| Communications & Output | RS 485 and RS 232 Modbus RTU, optional WiFi (2.4 GHz), CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, Modbus/TCP, 0-20mA, 4-20 mA, 0-10V, 0-5V, +/- 10V, +/- 5V |
| Load Cell Input | Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20 mA input |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 226 x 122 x 164 mm (Standard P version) |
| Approvals | NTEP Class III/IIIL |
