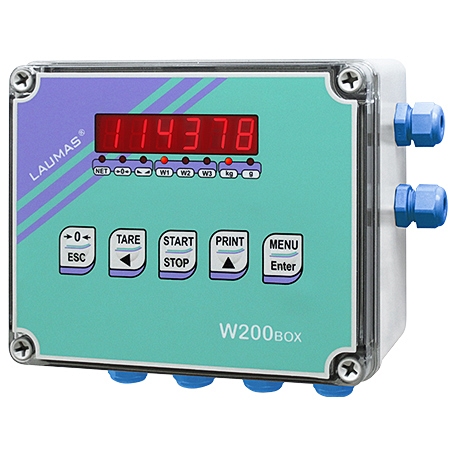

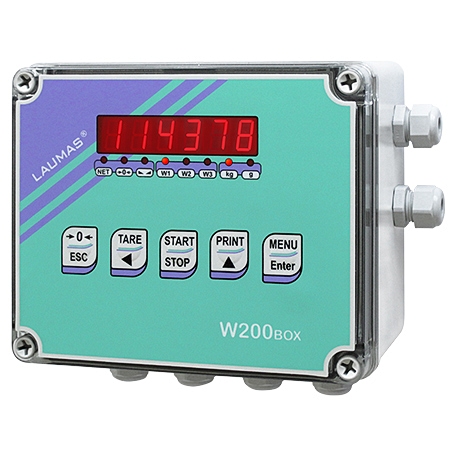

W200 Weighing & Batching Indicator
The Laumas W200 is a DIN-format weight indicator and batching controller with a 6-digit LED display, RS-485/RS-232 and optional fieldbus communications, NTEP Class III/IIIL approval, and UL recognition for the United States and Canada. Available in multiple batching programs – Load, Unload, 3/6/14 Products, and Multiprogram – it is purpose-built for automated filling, dosing, and batching applications in industrial process environments.
PRODUCT DETAILS
The W200 expands on the W100 platform with a full-featured batching and weighing controller designed for automated process lines where precise, repeatable ingredient loading and unloading are required. Its DIN integrates into standard control panels, and it shares the same Modbus RTU and RS-485/RS-232 connectivity as the W100 while adding fieldbuses including CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, and Modbus/TCP for full integration into modern industrial automation architectures.
The batching programs support up to 99 settable formulas, automatic fall calculation, tolerance error control, precision batching via slow and tapping functions, and alarm contact management. The different programs allow the installer to select the type of W2000 that best fits the target application. The user can select either the BASE, LOAD, UNLOAD, 3 PRODUCTS, 6 PRODUCTS, 14 PRODUCTS, or MULTIPROGRAM

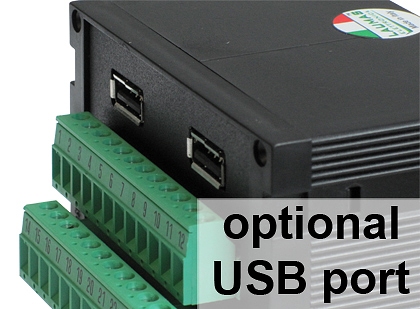

A USB port option allows data storage to a pen drive which includes batching records, alarms, and weight values to be imported for quality control documentation. NTEP Class III/IIIL approval and UL recognition for the United States and Canada support certified legal-for-trade use in process weighing environments.
Most Common Applications: Automated filling and dosing lines, multi-ingredient batching, chemical and food hopper and vessel weighing with PLC integration.
| Power Supply | 12 to 24 VDC ±10% 5 W |
|---|---|
| Display | 6-digit semi-alphanumeric red LED |
| Enclosure | DIN box IP54 front panel (IP65 optional) |

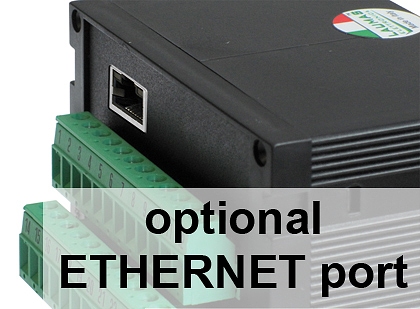

| Communications & Output | RS 485 and RS 232 Modbus RTU, optional CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, Modbus/TCP |
| Load Cell Input | Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20mA input |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 96 x 96 x 130 mm (drilling template: 92 x 92 mm) |
| Approvals | NTEP Class III/IIIL, UL Recognized |
