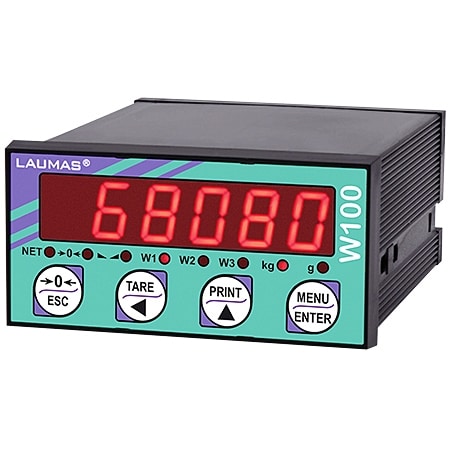

W100 DIN Weight Indicator
The Laumas W100 is a compact DIN-rail weight indicator with a 6-digit LED display, RS-485/RS-232 communications via Modbus RTU, 5 relay outputs, NTEP Class III/IIIL approval, and UL recognition for the United States and Canada. Designed for front-panel mounting in control cabinets and industrial automation systems requiring non-legal or legal-for-trade weight data.
PRODUCT DETAILS
The W100 is a DIN-installed weight indicator designed to integrate directly into industrial control panels and automation enclosures where space is limited and seamless PLC or SCADA connectivity is required. At just 96x48x130 mm (drilling template 92×45 mm), it fits standard DIN panel cutouts alongside other instrumentation without requiring a dedicated indicator housing.
Despite its compact footprint, the W100 delivers a capable feature set: Modbus RTU communications over RS-485 or RS-232 with baud rates up to 115,200 bit/s, five relay outputs for setpoint control and process automation, three optoisolated digital inputs for status monitoring, and an optional 16-bit analog output for direct PLC analog integration. Up to eight 350 Ω load cells can be connected in parallel via a junction box, supporting vessel, hopper, tank, silo, and conveyor weighing installations.
The real-time clock, vibration digital filter, and semi-automatic tare functions cover the most common industrial process requirements. Configuration is handled via the Laumas Instrument Manager PC software – available as a free download – or via the front-panel keypad. NTEP Class III/IIIL approval (10,000 divisions) and UL recognition for the United States and Canada support legal-for-trade deployments in controlled industrial environments.
Most Common Applications: Tank and hopper weighing, silo level monitoring, batching and filling line control, conveyor belt weighing, industrial process control and PLC integration.
| Power Supply | 12 to 24 VDC ±10% 5 W |
|---|---|
| Display | 0.55 in (14 mm) 6-digit semi-alphanumeric red LED |
| Enclosure | DIN box IP54 front panel (IP65 optional) |
| Communications & Output | RS485 and RS232 Modbus RTU, optional 0-20mA or 4-20 mA or 0-10V or 0-5V or +/- 10V or +/- 5V |
| Load Cell Input | Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20mA input |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 96 x 48 x 130 mm (drilling template: 92 x 45 mm) |
| Approvals | NTEP Class III/IIIL, UL Recognized |
