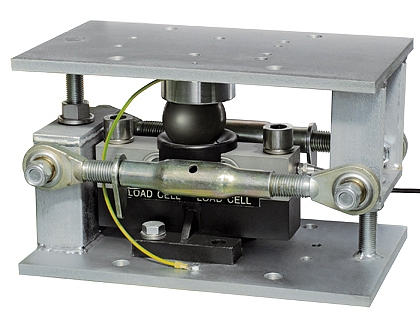

VCOKDTL Mounting Kit for Double Shear Beam and Column Load Cells
The Laumas VCOKDTL is a galvanized steel mounting kit for double shear beam (DTL) and column (COL, COK) load cells, supporting up to 50,000 kg (110,231 lb). It features integrated galvanized steel stay rods with ball-and-socket joints for lateral constraint, anti-tilt threaded rods, and separate assembly instructions for shear beam and column cell configurations.
PRODUCT DETAILS
The VCOKDTL is a heavy-duty mounting kit accommodating both double shear beam and column load cells in high-capacity industrial weighing applications up to 50,000 kg (110,231 lb). Galvanized steel upper and lower plates provide a durable, corrosion-resistant foundation, while two integrated galvanized steel stay rods with dual ball-and-socket joints resist lateral forces. Anti-tilt threaded rods with self-locking nuts prevent the weighing structure from tipping under vibration, wind, or impact loads.
The kit ships with dedicated installation procedures for both load cell types: shear beam cells use a galvanized plate inserted alongside the cell, while column cells mount on upper and lower bases included in the kit.
Most Common Applications: Large industrial tank and silo weighing, heavy process vessel scales, outdoor platform weighing, high-capacity hopper scales prone to vibrations caused by parts in motion.
| Capacities | Up to 50,000 kg (110,231 lb) |
|---|---|
| Material | Galvanized Steel |
