TLS Weight Transmitter

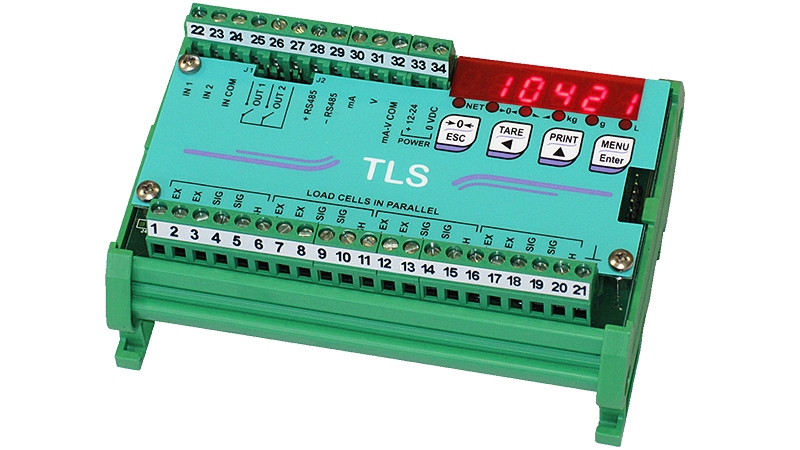

The Laumas TLS is a DIN-rail weight transmitter with 4 load cell inputs, a 16-bit analog output, RS485 Modbus RTU communication, and a 6-digit LED display. It supports up to 8 pcs of 350-ohm load cells and is rated ATEX Zone 2-22 for hazardous environments with an ATEX-approved enclosure.
PRODUCT DETAILS
The TLS weight transmitter is a practical, multi-input solution for weighing systems that require a single analog output to drive a PLC or controller. With 4 dedicated load cell inputs and support for up to 8 pcs of 350 Ohms load cells in parallel via junction box, it suits platform scales, tank weighing, and process automation where a compact, rail-mounted transmitter must deliver a stable, high-resolution analog signal.
The TLS communicates via RS 485 using Modbus RTU, ASCII Laumas, or continuous one-way transmission protocols, and connects to remote displays and PC’s. Its 16-bit optoisolated analog output – configurable as 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, ±10 V, or ±5 V – drives virtually any PLC analog input or data acquisition system. Two optorelay outputs handle setpoint-triggered switching for alarm or process control functions.

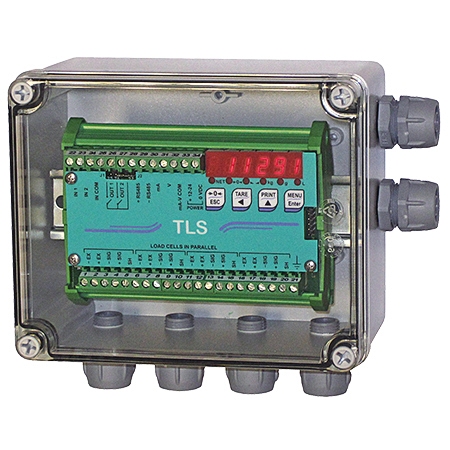

For demanding environments, the TLS is available in an IP67 polycarbonate enclosure and an ATEX II 3GD (Zone 2-22) certified version – broadening its application to chemical plants, grain handling, and other classified hazardous locations. Configuration is handled via the free Instrument Manager PC software.
Most Common Applications: Tank and silo weighing, platform scales, hopper and bin weighing, batching and filling lines, process automation, hazardous area weighing (ATEX version).
| Input Channels | 4 |
|---|---|
| Load Cell Inputs | Up to 8 (350 Ω) |
| Output Signal | 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, ±10 V, ±5 V |
| Communication | RS485 Modbus RTU) |
| Relay Outputs | 2 optorelay max 24 VDC / 60 mA |
| Digital Inputs | 2 digital inputs, 5 to 24 VDC PNP |
| Display | 6-digit 8 mm height semi-alphanumeric red LED, 6 signalling LEDs |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -30°C to +80°C (-22°F to +176°F) |
| Conversion per second | 80 |
| Power Supply | 12 to 24 VDC ±10%, 5 W |
| IP Rating | IP67 (optional polycarbonate enclosure) |
| Dimensions | 4.8 x 3.6 x 2.0 in (123 x 92 x 50 mm) |
| Approvals | UL |
