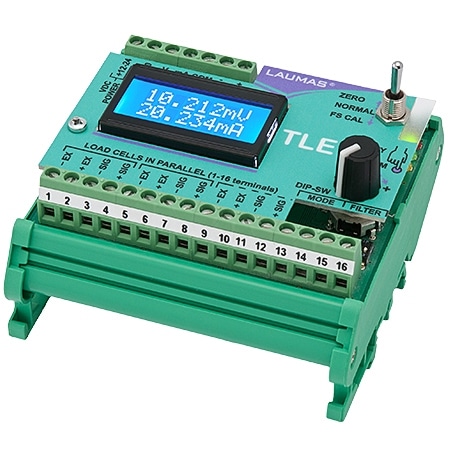

TLE Analog Weight Transmitter with RS485
The Laumas TLE is a high-speed analog weight transmitter with 4 load cell inputs, 16-bit analog output with a response time of 3 ms, RS485 Modbus RTU communication, and a backlit LCD. It is designed for dynamic weighing and fast process control applications requiring near-instant analog response.
PRODUCT DETAILS
The TLE is a specialized analog weight transmitter engineered for applications that demand the fastest possible analog response time. Its 16-bit high-speed analog output responds in just 3 ms – making it the ideal solution for dynamic weighing on conveyor belts, checkweighers, filling machines, and any fast-moving process control loop where slow transmitter response would introduce measurement lag or process errors.
With 4 dedicated load cell inputs and support for up to 8 pcs 350 Ohms load cells in parallel via a junction box, the TLE serves both single-cell and multi-cell applications. Its backlit two-line alphanumeric LCD simultaneously displays the load cell millivolt signal and the analog output value – a practical feature that eliminates the need for a separate multimeter during commissioning and zero/full-scale adjustment. RS485 communication using Modbus RTU, ASCII Laumas, or continuous one-way transmission allows integration into supervisory systems and PC-based data acquisition.

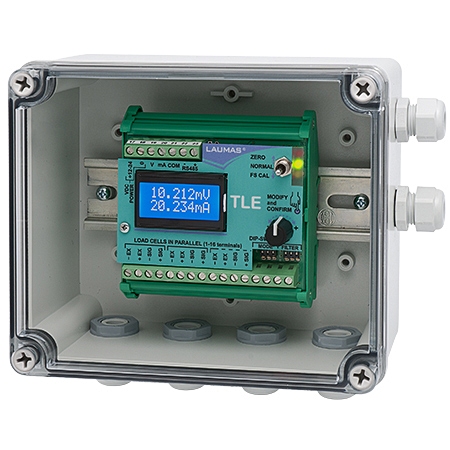

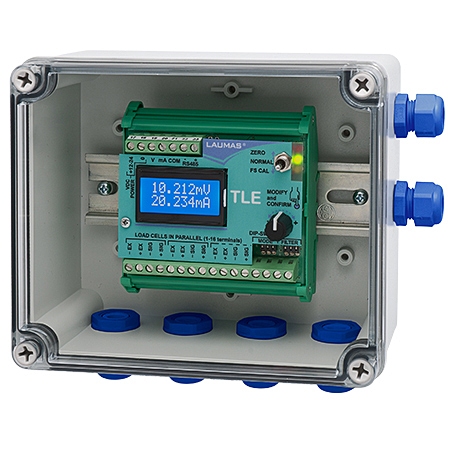

The TLE mounts on Omega/DIN rail or in a junction box, with an optional IP67 polycarbonate enclosure and ATEX II 3GD (Zone 2-22) version available for hazardous locations.
Most Common Applications: Conveyor belt scales, fast process control loops, dynamic force measurement.
| Input Channels | 4 |
|---|---|
| Load Cell Inputs | Up to 8 (350 Ω) |
| Output Signal | 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, ±10 V, ±5 V |
| Communication | RS485 Modbus RTU |
| Relay Outputs | – |
| Digital Inputs | – |
| Display | LCD 2 lines x 8 digits 5 mm height, visible area 38 x 16 mm |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -30°C to +80°C (-22°F to +176°F) |
| Conversion per second | 300 |
| Power Supply | 12 to 24 VDC ±10%, 5 W |
| IP Rating | IP67 (optional polycarbonate enclosure) |
| Dimensions | 3.5 x 3.7 x 2.4 in (90 x 95 x 60 mm) |
| Approvals | UL |
