TFPVEN1090 Mounting Kit for Bending and Shear Beam Load Cells

IMAGES

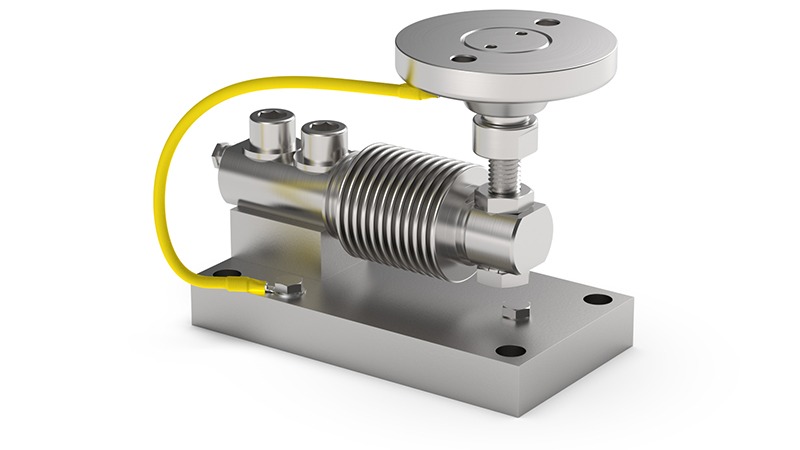

The Laumas TFPVEN1090 is a AISI 304 stainless steel mounting kit for bending and shear beam load cells (FCAL, FCAX series), supporting up to 500 kg (1,102 lb), certified according to EN 1090. It feature a self-centering joint foot for misalignment compensation and partial height adjustment, as well as a transport locking screw.

PRODUCT DETAILS

The TFPVEN1090 is a fully stainless steel mounting kit engineered for bending beam load cell installations in hygienic, corrosive, or structurally demanding environments. The TFPVEN1090 supports up to 500 kg (1,102 lb) with FCAL and FCAX load cells.

Self-centering joint foot resists lateral forces and prevents tipping, while compensating for structural misalignments. Partial height adjustment is provided for leveling during installation. A locking screw protects the load cell during shipping and commissioning. Ideal for food, pharmaceutical, and chemical weighing environments where full stainless steel construction is required.

Most Common Applications: Hygienic platform scales, pharmaceutical vessel weighing, food production hopper scales, outdoor and washdown tank weighing.

Capacities

Up to 500 kg (1,102 lb)

Material

AISI 304 Stainless Steel
