TFPV Mounting Kit for Bending Beam Load Cells

IMAGES

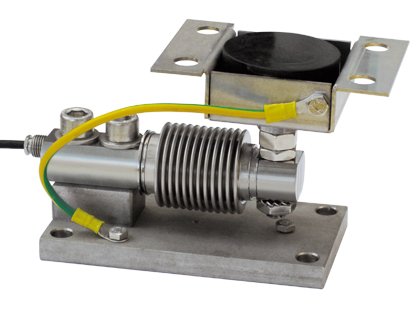

The Laumas TFPV is a mounting kit for bending beam load cells (FCAL, FCAX series) supporting up to 500 kg (1,102 lb). It features stainless steel self-centering joint feet and includes adjustable upper plate, partial height adjustment, and a transport locking screw.

PRODUCT DETAILS

The TFPVmounting kit is designed for bending beam load cells in weighing systems. It features AISI 304 stainless steel self-centering joint feet and lower plates.

It incorporates an adjustable upper plate (stainless or galvanized) for angular flexibility, partial height adjustment for leveling, and a locking screw to protect the load cell during transport and commissioning. The self-centering joint constrains lateral forces and prevents tipping while compensating for misalignment in the support structure.

Most Common Applications: Platform scales, tank and vessel weighing, conveyor scales, food production equipment, light duty industrial weighing structures.

Capacities

Up to 500 kg (1,102 lb)

Material

AISI 304 Stainless Steel
