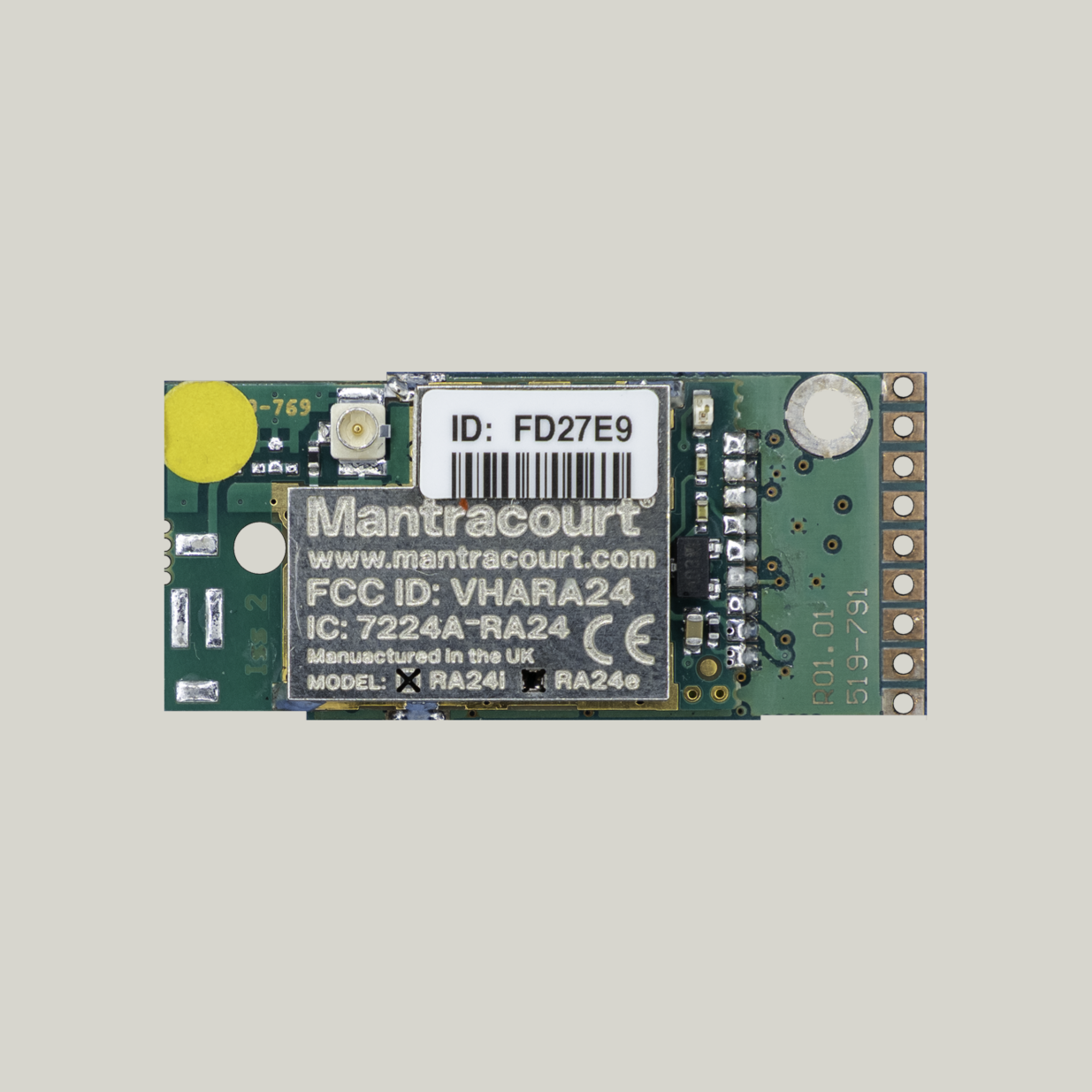

T24-SA Wireless Strain Bridge Transmitter Original Equipment Manufacturer (OEM) Module
The Mantracourt T24-SAe and T24-SAi are miniature Original Equipment Manufacturer (OEM) PCB wireless strain bridge transmitter modules for integration into custom products and enclosures. Compatible with load cells, torque sensors, strain gauges, and pressure modules at 85 Ω minimum, they transmit at 2.4 GHz with FCC and Industry Canada approval. The T24-SAe uses an external antenna; the T24-SAi has an integrated antenna.
PRODUCT DETAILS
The T24-SAe and T24-SAi are miniature bare-PCB Original Equipment Manufacturer (OEM) wireless modules that add 2.4 GHz wireless connectivity to strain bridge transducers – including load cells, torque sensors, strain gauges, and pressure modules – for embedding into custom instruments, enclosures, and Original Equipment Manufacturer (OEM) products. Their compact PCB form factor (37.5 x 16.8 mm) minimizes footprint while delivering high-accuracy, low-noise measurements with up to 9-point linearization and a 24-bit A/D converter.
The T24-SAe features an external antenna connector for installations where antenna placement relative to the PCB matters for range or form factor, while the T24-SAi integrates the antenna directly for simpler assembly. Both operate from 2.1 to 3.6 VDC – powered from the host product’s battery or regulated DC supply – and provide 5 VDC excitation to drive strain gauge bridge loads down to 85 Ω. Configurable transmission rates from 5 ms to once per day, and up to 800 m (2,625 ft) wireless range, make them equally suitable for high-speed Original Equipment Manufacturer (OEM) measurement and low-power long-range remote sensing. Data is receivable by any T24 receiver – displays, analog output modules, relay modules, and PC interfaces.
Most Common Applications: Original Equipment Manufacturer (OEM) embedded wireless load cell and force measurement instruments, custom crane and rigging scale electronics, portable torque measurement tools.
| Input Channels | – |
|---|---|
| Load Cell Inputs | 1 strain gauge bridge (85 Ω minimum) |
| Output Signal | – |
| Communication | 2.4 GHz licence-exempt wireless, range of up to 2,625ft |
| Relay Outputs | – |
| Digital Inputs | – |
| Display | – |
| Operating Temperature | 20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Conversion per second | up to 200 update per second |
| Power Supply | 2.1 to 3.6 VDC |
| IP Rating | – |
| Dimensions | 1.47 x 0.66 x 0.26 in (37.5 x 16.8 x 6.6 mm) |
| Approvals | FCC, IC |
