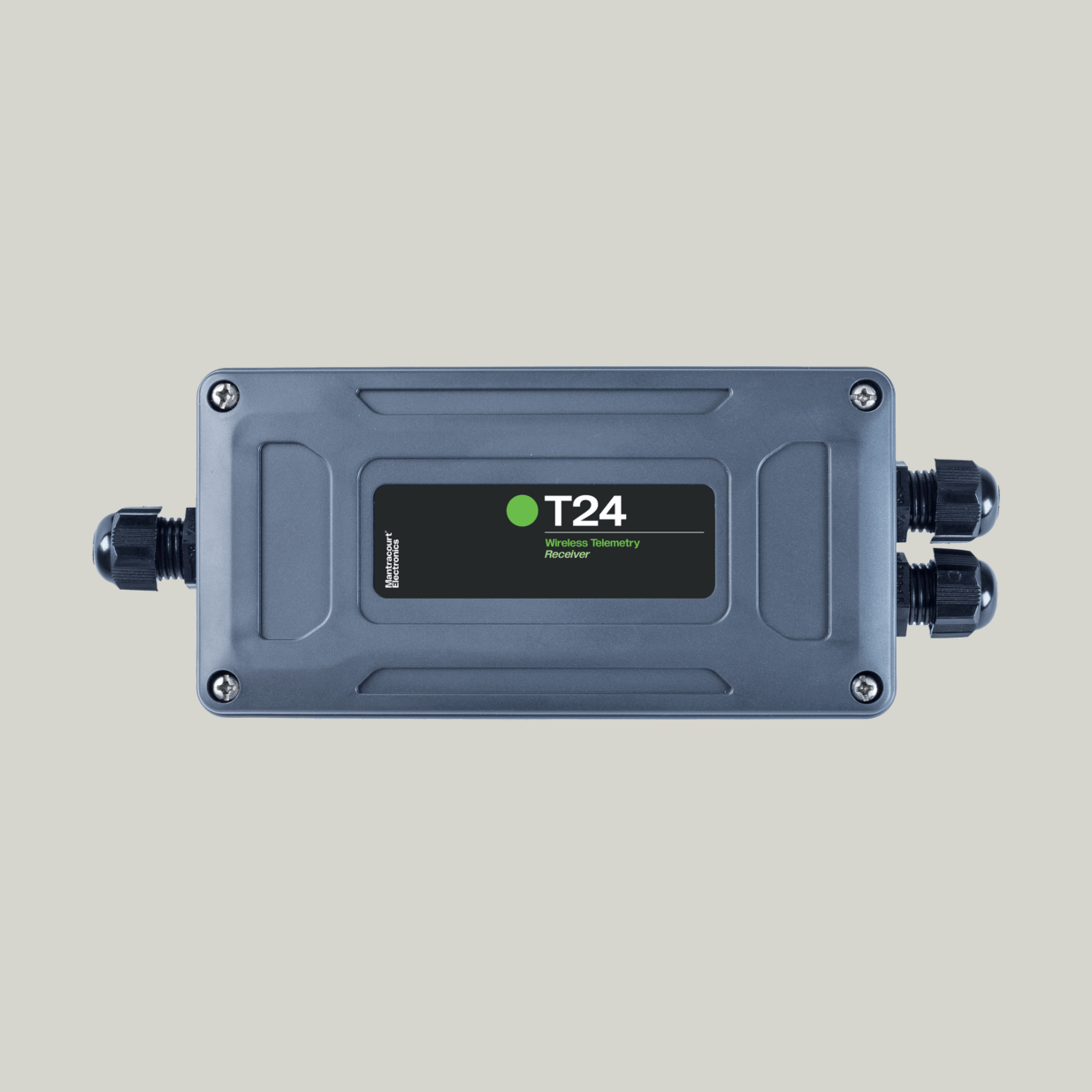

T24-RM1 Wireless Relay Output Receiver
The Mantracourt T24-RM1 is an IP67/NEMA 4 wireless relay output receiver with two SPCO-type power relays and one alarm relay, providing wireless set-point power switching control for T24 telemetry systems over distances up to 800 m (2,625 ft). Each relay can be associated with a group of up to eight T24 transmitters.
PRODUCT DETAILS
The T24-RM1 turns wireless sensor data into direct physical control actions — making it the critical safety and automation component in any T24 telemetry system. When a measurement from any paired T24 transmitter crosses a configured set-point, the T24-RM1 instantly activates one or both of its two SPCO-type power relay outputs to trigger alarms, cut power, stop conveyor drives, or actuate warning lights — all without a PLC or intermediate controller. This makes it invaluable in crane overload protection, silo level alarms, press force monitoring, and process control applications where a wireless sensor value needs to directly drive a real-world output.
The two power relays are rated at 10 A at 240 VAC or 10 A at 30 VDC, handling most direct switching loads. A third dedicated alarm relay rated at 1 A at 120 VAC or 1 A at 24 VDC, define a loss of signal or low battery or data integrity error to alert operators if wireless communications are interrupted. Relay modes include standard set-point, hysteresis, latching, and inversion, giving full flexibility to match the control logic of the application. Digital input allows either reset of a latched relay or transmit a data packet. Housed in an IP67/NEMA 4 enclosure and powered from a standard 9 to 32 VDC industrial supply, the T24-RM1 is deployable in outdoor, wash-down, and heavy industrial environments.
Most Common Applications: Crane and hoist overload cutout, silo and vessel level alarm, industrial process set-point control.
| Radio Frequency | 2.4 GHz |
|---|---|
| Wireless Range | Up to 2,624 ft (800 m) |
| Power Supply | 9 to 32 VDC |
| Operating Temperature | -20°C to +55°C (−4°F to +131°F) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Maximum Humidity | 95% non-condensing |
| IP Rating | IP67 / NEMA 4 |
| Dimensions | 6.5 × 3.3 × 2.2 in (164 × 84 × 57 mm) |
