SB2 Self-Centering Joint Foot

IMAGES

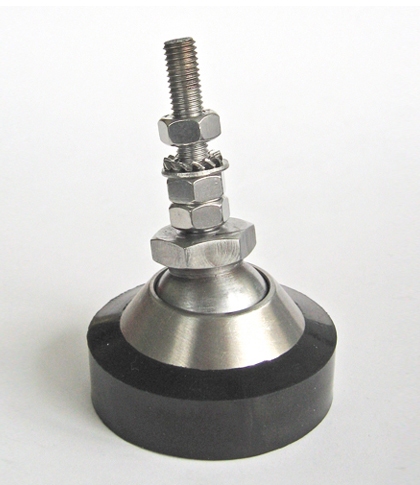

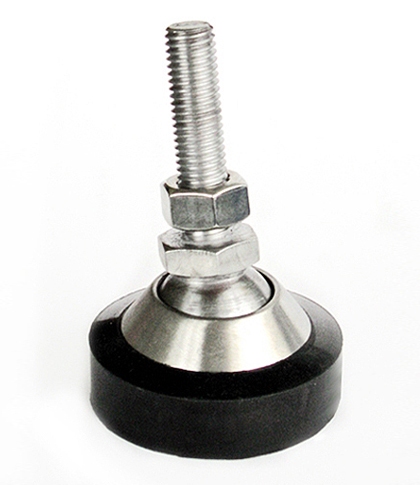

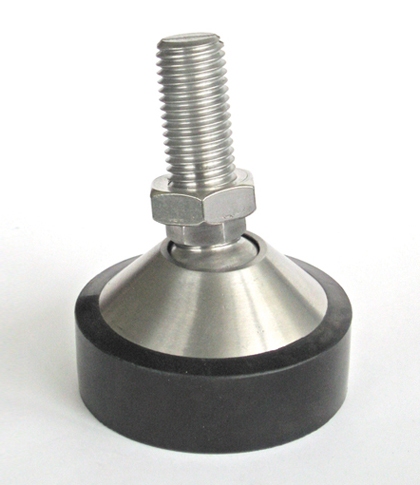

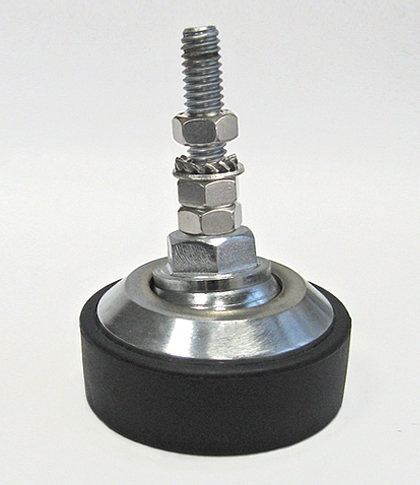

The Laumas SB2 is a self-centering joint foot for bending beam and shear beam load cells, available in stainless or galvanized steel with capacities up to 5,000 kg (11,023 lb). It accommodates M8 to M20 thread sizes and suits a broad range of industrial platform and floor scale installations.

PRODUCT DETAILS

The SB2 is a passive self-centering joint foot designed to correctly support bending beam and shear beam load cells in multi-cell platform and floor scale assemblies. Available in stainless steel for corrosive or washdown environments and galvanized steel for standard industrial applications, the SB2 covers thread sizes from M8 to M20 and static load ratings from 500 to 5,000 kg (1,102 to 11,023 lb). Nuts and washers are included.

Most Common Applications: Industrial platform scales, floor scales, multi-cell weighing structures.

Max Static Load

500 kg (1,102 lb) to 5,000 kg (11,023 lb) – individual capacities:

  • 500 kg (1,102 lb): M8, stainless steel
  • 500 kg (1,102 lb): M10, stainless steel
  • 2,000 kg (4,409 lb): M12, stainless steel
  • 5,000 kg (11,023 lb): M20, stainless steel
  • 2,000 kg (4,409 lb): M12, galvanized steel
  • 5,000 kg (11,023 lb): M20, galvanized steel
Thread Sizes

M8 x 1.25; M10 x 1.5; M12 x 1.75; M20 x 2.5

Material

Stainless steel; Galvanized steel
