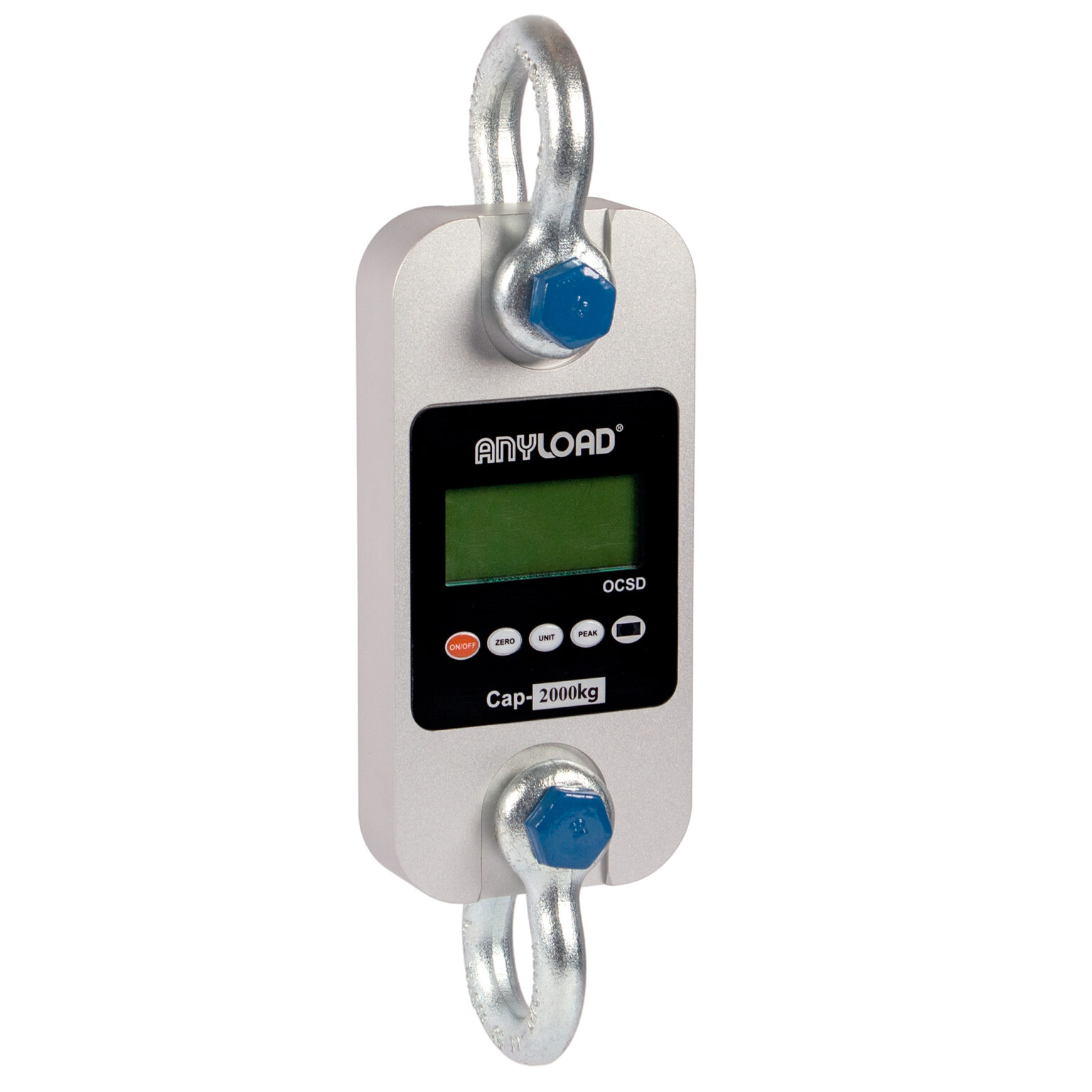

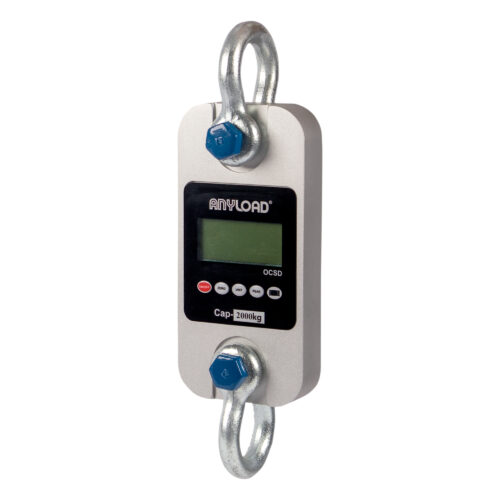

OCSD Dynamometer
The Anyload OCSD is a digital dynamometer for tension force measurement and load testing from 1 t (2,000 lb) up to 200 t (400,000 lb). With dual shackle connections, peak-hold, two programmable set-points, and optional wireless indicators, it suits load testing, rigging, and proof-load applications where precise pulling force matters.
PRODUCT DETAILS
The OCSD is a digital dynamometer built to measure tensile force and weight in line with a load, covering an exceptionally wide range from 1 t (2,000 lb) to 200 t (400,000 lb). Where a crane scale hangs a load from a hook, the OCSD connects through shackles at both ends, making it the tool of choice for proof-load testing, rigging, towing, anchor and mooring checks, and structural pull tests.
An aluminum body covers the 1–5 t models and alloy steel handles the 10–200 t range, each fitted with a 25 mm backlit LCD that stays readable in poor light. Peak-hold captures the maximum force reached during a test, two programmable set-points support safety and limit warnings, and unit switching across kg, lb, t, N, and kN suits both weighing and force work. Optional wireless indicators — handheld, panel, or printing — let crews read and log results from up to 30 m (98 ft) away, while three AA batteries deliver around 50 hours of operation.
Most Common Applications: Proof-load and pull testing, crane and hoist load testing, rigging and lifting force measurement, towing and winching, anchor, mooring, and structural tension tests.
| Capacities | 1 t (2,000 lb), 2 t (4,000 lb), 3 t (6,000 lb), 5 t (10,000 lb), 10 t (20,000 lb), 20 t (40,000 lb), 30 t (60,000 lb), 50 t (100,000 lb), 100 t (200,000 lb), 200 t (400,000 lb) |
|---|---|
| Division | 0.5 kg (1 lb) to 100 kg (200 lb) |
| Accuracy Class | OIML Class III (not certified) |
| Display | 5-digit LCD with backlight, 25 mm |
| Enclosure | Aluminum (1–5 t); alloy steel (10–200 t) |
| Battery | 3 x AA |
| Operating Time | 50 hours |
| Protection Rating | – |
| Working Temperature | -20°C to 50°C (-4°F to 122°F) |
| Remote Control | Optional (wireless indicator) |
