OCSA3 Hanging Crane Scale

IMAGES

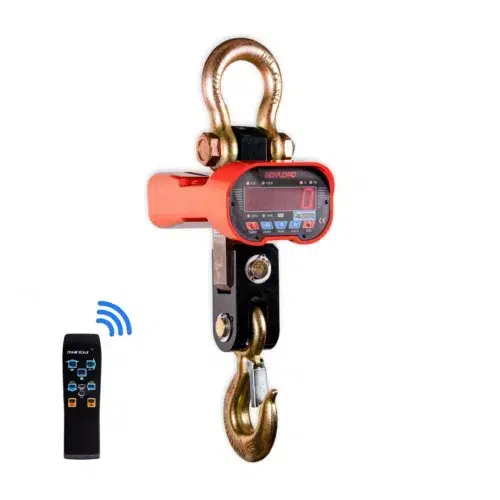

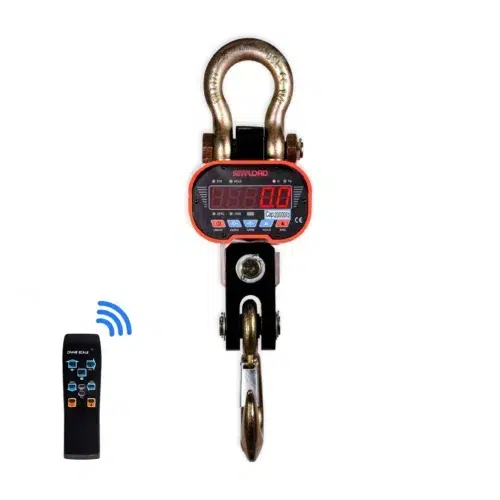

The Anyload OCSA3 is a high-capacity hanging crane scale for heavy lifting from 20,000 lb to 40,000 lb. With a heavy-duty bow shackle, fixed eye hook, large 38 mm (1.5 in) LED display, and infrared remote, it is built for steel mills, ports, and heavy fabrication where big loads ride the crane hook.

PRODUCT DETAILS

The OCSA3 steps up to heavy-capacity weighing, handling loads from 20,000 lb all the way to 40,000 lb on the crane hook. It is built for the demanding world of steel mills, heavy fabrication, ports, and scrap yards, where the weight of a single lift can decide loading, billing, and safety.

A robust heavy-duty bow shackle and fixed eye hook anchor the scale to the crane, and a large 38 mm (1.5 in) five-digit LED display keeps the reading visible across a wide, busy floor. Fast resolution switching, HOLD, tare in/tare out, and an auto overload alarm support safe heavy lifting, while the infrared remote and rechargeable 6 V / 10 Ah battery (about 100 hours per charge) let crews operate from a safe distance through extended shifts.

Most Common Applications: Steel mill and heavy fabrication weighing, port and shipyard load handling, scrap and recycling yards, foundry and forging operations, heavy overhead crane weighing.

Capacities

20,000 lb (9,072 kg), 30,000 lb (13,608 kg), 40,000 lb (18,144 kg)

Division

OIML R76 Class III (not certified)

Accuracy Class

5-digit LED, 38 mm (1.5 in)

Display

Die-cast aluminum

Enclosure

6 V / 10 Ah rechargeable

Battery

100 hours

Operating Time

Protection Rating

-10°C to 40°C (14°F to 104°F)

Working Temperature

Yes (infrared)

Remote Control
