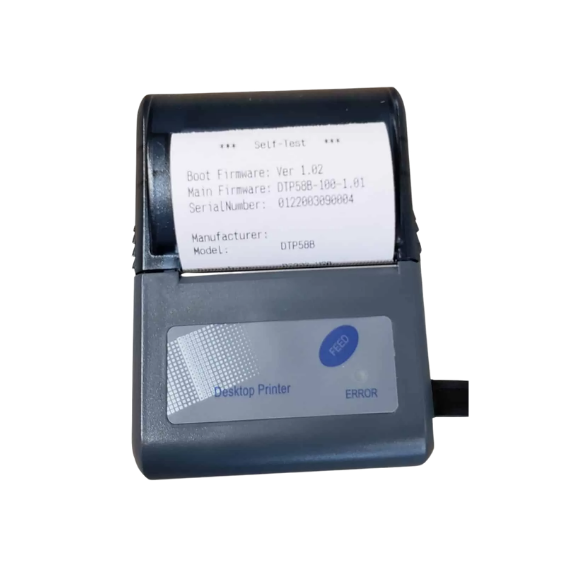

The Massload Thermal Ticket Roll Printer is a compact thermal roll printer that prints on standard 2.25″ (57 mm) roll paper via RS 232 serial cable, powered by a 100 to 240 VAC-to-DC 12 VDC power adapter.
The Massload Thermal Ticket Roll Printer is a durable, compact thermal roll printer that works with any indicator or controller. Where slip printers require individual paper sheets, the Thermal Ticket Roll Printer uses standard 2.25″ (57 mm) roll adding machine paper – widely available, inexpensive, and easy to replace in the field without special supplies.
Thermal printing eliminates ink ribbons and cartridges, reducing consumable costs and maintenance. The printer connects to the indicator via RS 232 serial cable and runs on 12 V DC – compatible with vehicle and battery-powered portable systems – with an optional 110 V AC adapter for fixed installations.
| Print Method | Thermal |
|---|---|
| Interface | RS 232 |
| Paper Type | thermal paper |
| Paper Size | 2.25″ (57 mm) roll |
| MCBF | 5,000,000 to 15,000,000 |
| Power Supply | 12 VDC or AC to DC power adapter |
| Operating Temperature | 0 to 50°C |
| Dimensions | 4.21 x 3.0 x 1.81 in (107 x 78 x 46 mm) |
