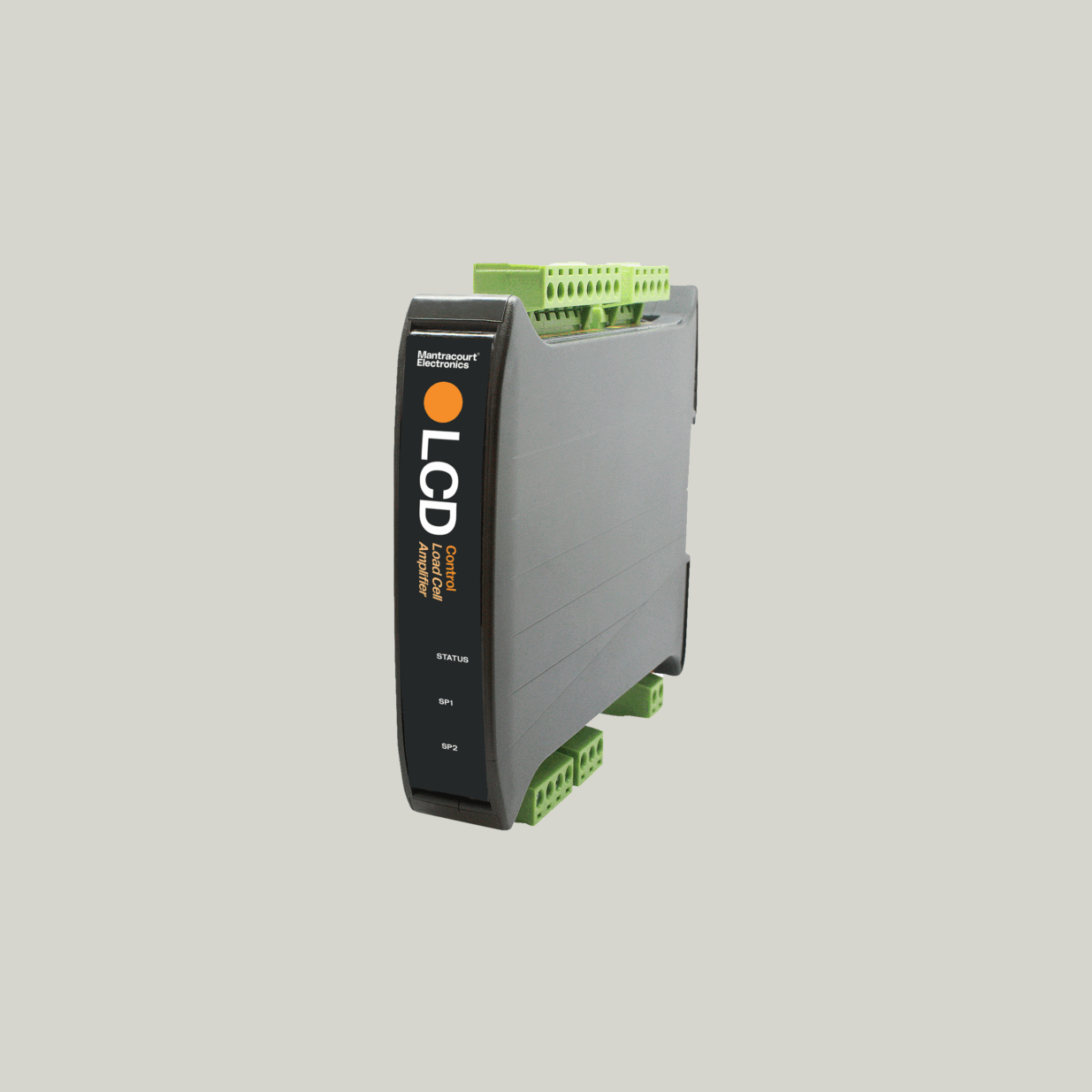

LCD20 DIN Rail Load Cell Signal Conditioner
The Mantracourt LCD20 is a compact, stackable DIN rail load cell signal conditioner delivering isolated 4-20 mA and 0-10 V analogue outputs with two set-point relays, two digital inputs, and 10-point linearization. Powered from 9 to 32 V DC, it supports 6-wire load cell connection and full digital setup via PC Toolkit or handheld programmer.
PRODUCT DETAILS
The LCD20 is an intelligent microprocessor-based DIN rail amplifier designed for process monitoring and control with load cells, pressure transducers, and strain gauge-based sensors. It is the go-to solution when an analogue output and on-board relay control are both needed in a single compact module.
In industrial process control environments, the LCD20 replaces a combination of separate amplifiers, relay modules, and signal conditioners in a single stackable unit. Its two SPNO relays can be configured to trigger at net, gross, peak, or valley thresholds, making it ideal for level control in tanks and silos, batching systems, overload alarms on conveyors, and machine guarding applications. The 4-20 mA and 0-10 V analogue outputs feed directly into existing PLCs, DCS controllers, and SCADA systems. Ten-point linearization compensates for non-linear sensors, and 6-wire load cell connection compensates for cable losses. Configuration and calibration are handled through the free LC Toolkit software via USB or an optional LP2 handheld programmer, which means no need for a laptop on-site during commissioning.
| Output Signal | 2 wire 4-20 mA and 2 wire 0-10 V |
|---|---|
| Power Supply | 9 to 32 VDC |
| Bridge Sensitivity | 0.5 to 7.8 mV/V |
| Bridge Excitation | 4.75 to 5.25 V |
| Input Range | – |
| Linearity | – |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| IP Rating | IP20 |
| Enclosure Material | – |
| Dimensions | 120 mm x 112 mm x 23 mm (4.7″ x 4.4″ x 0.9″) |
