Laumas Instrument Manager

IMAGES

The Laumas Instrument Manager is a PC-based software for configuring, monitoring, calibrating, and updating the firmware of Laumas weight indicators and transmitters via RS232 or RS485 serial connection to USB. Compatible with Windows 7 and higher, it supports complete parameter management, real-time weight monitoring, guided sample-weight calibration, firmware updates, and legally relevant parameter access control.

Model

Clear

ADD TO QUOTE

PRODUCT DETAILS

Instrument Manager is a dedicated PC software for the complete lifecycle management of Laumas weight indicators and weight transmitters. Used by scale builders, system integrators, and service technicians, it simplifies the configuration, calibration, monitoring, and maintenance of Laumas instruments in both new installations and ongoing service operations — eliminating the need for front-panel programming in complex or multi-instrument environments.

The software connects to a instrument via its RS232 or RS485 serial port using a compatible RS232/USB or RS485/USB converter cable. From a single PC interface, users can create, compare, and print complete instrument configurations; save configurations for later deployment to instruments that are not yet connected; and monitor live weight readings with real-time display of setpoint status, stability, and digital input/output states.

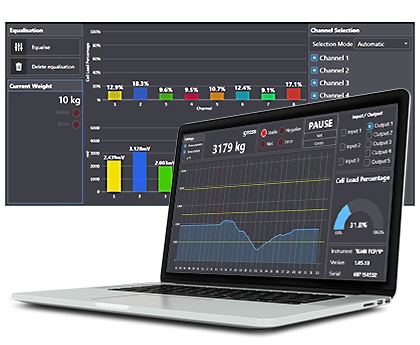

For multichannel weight transmitters, the software visualises the weight distribution across individual load cell channels and displays the mV values read on each channel — supporting equalization and diagnostics on multi-cell platforms. The guided real calibration wizard walks technicians through sample-weight calibration step by step, with real-time weight display and correction support. Firmware updates are handled automatically via internet download, keeping instruments current. Legally relevant parameters for approved instruments are protected behind qualified access control.

Most Common Applications: Initial configuration and commissioning of indicators and transmitters, service and parameter backup for scale maintenance, multichannel load cell platform equalisation, legal-for-trade instrument management.

Specifications
Documents & Drawings

Compatible Hardware	Laumas indicators and weight transmitters (refer to individual instrument datasheet for compatibility)
Platform	Windows 7 or higher
License	Free
Channels	Single transmitter or Indicator
Communication Interface	RS232 or RS485 to USB
Key Functions	Full parameter configuration, configuration save/compare/print, real-time weight monitoring (setpoint, stability, I/O), multichannel load cell equalisation and mV display, guided sample-weight real calibration wizard, automatic firmware update via internet, legally relevant parameter access control
Printer Option	–
System Requirements	Windows 7 or higher
