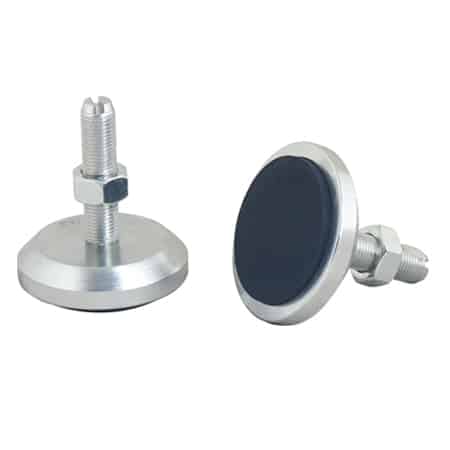

FMFSS Fixed Mounting Foot

IMAGES

The Anyload FMFSS is a fixed mounting foot in 2Cr13 stainless steel with capacities from 100 lb to 10,000 lb (45 kg to 4,536 kg), available in imperial (1/2″, 3/4″) threads. Its rigid, low-profile design suits floor scale and platform scale assemblies requiring a stainless steel fixed foot.

PRODUCT DETAILS

The FMFSS is the 2Cr13 martensitic stainless steel variant of the FMF fixed mounting foot series. It shares the same rigid, non-articulating base and low-profile geometry as the alloy steel FMF and the 17-4PH/304 stainless FMFS4 – 64.5 to 76.0 mm (2.54 to 2.99 in) total height – offering a stainless steel fixed foot at an intermediate material grade within the series. Available in imperial (1/2″-20 UNF, 3/4″-16 UNF) threads, covering 100 lb to 10,000 lb (45 kg to 4,536 kg).

Most Common Applications: Platform and floor scale assemblies, light washdown multi-cell weighing structures.

Max Static Load

45 kg (100 lb) to 4,536 kg (10,000 lb) – individual capacities:

  • FMFSS60-1/2: 500-SE5,000 lb
  • FMFSS70-3/4: 5,000-10,000 lb
Thread Sizes

1/2″-20 UNF; 3/4″-16 UNF

Material

2Cr13 Stainless Steel
