Anyload LB100 Animal Load Bar / Beam

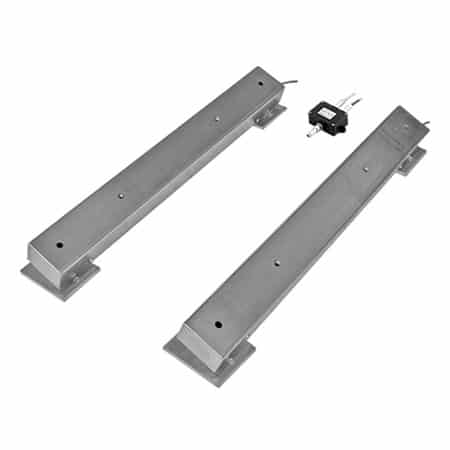

Anyload’s animal load bars combine two alloy-steel weigh beams a digital indicator to form a complete single-animal scale in 5,000 lb. Built on rugged 563YH shear beam load cells with rodent-protection cabling and factory calibration, it delivers fast, accurate livestock weighing under your own platform and penning.
PRODUCT DETAILS
The Animal Load Bar / Beam system is built for single-animal weighing — cattle, hogs, and other livestock — wherever a durable, low-maintenance scale is needed in the chute, barn, or feedlot. Two alloy-steel beams run widthwise beneath your own platform and penning, much like axles under a vehicle, turning a do-it-yourself deck into an accurate livestock scale. Because the beams arrive factory-calibrated, no installation technician is required: set them on a solid, level foundation, zero the indicator, and start weighing.
Each beam carries 563YH shear beam load cells protected by rodent-resistant cabling and an internal junction box, with a separate junction box supplied to tie the pair together. Adjustable levelling feet keep the scale true on uneven ground, critical for accuracy in outdoor and farmyard settings. The system reads out on a variety of digital indicators. NTEP and Measurement Canada certification make it suitable for trade-grade livestock weighing across North America.
Most Common Applications: Cattle and livestock weighing, feedlot and barn scales, single-animal chute weighing, DIY farm weigh platforms, agricultural OEM scale builds.
| Capacities | 5,000 lb (2,268 kg) |
|---|---|
| Graduation | 1 lb (5,000 lb capacity) |
| Accuracy | 0.2% of full scale |
| Load Bar Material | Alloy Steel |
| Load Cells | Four 563YH shear beam load cells, 2,500 lb (1,134 kg) each |
| Load Bar Length | 80 cm (31.5 inches) |
| Load Bar Weight | 78.7 lb (35.7 kg) per bar |
| Overload Protection | Standard overload capacity for chute, penning, and shock loading |
