AMFSS-F Active Mounting Foot

IMAGES

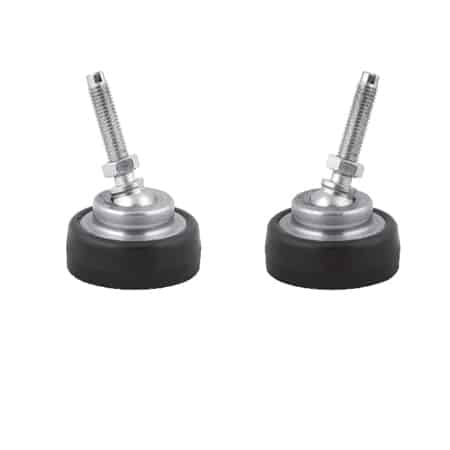

The Anyload AMFSS-F is an active mounting foot in 2Cr13 stainless steel with capacities from 100 lb to 20,000 lb (45 kg to 9,072 kg), available in imperial (1/2″, 3/4″, 1″) threads. Its articulating ball-joint provides self-alignment for floor scale and platform scale applications requiring a stainless steel foot.

PRODUCT DETAILS

The AMFSS-F is the 2Cr13 martensitic stainless steel variant of the AMF-F active mounting foot series. It shares the same articulating ball-joint self-alignment principle and capacity range as the alloy steel AMF-F and the 17-4PH/304 stainless AMFS4-F, offering a stainless steel option at an intermediate material grade within the series. Available in imperial UNC threads (1/2″-20, 3/4″-16, 1″-14), covering 100 lb to 20,000 lb (45 kg to 9,072 kg).

Most Common Applications: Platform and floor scale assemblies requiring stainless steel construction, general industrial and light washdown environments, multi-cell weighing structures.

Max Static Load

45 kg (100 lb) to 9,072 kg (20,000 lb) – individual capacities:

  • AMFSS-F-1/2: 100-4,000 lb; SE5,000 lb
  • AMFSS-F-3/4: 5,000-10,000 lb
  • AMFSS-F-1: 15,000; 20,000 lb
Thread Sizes

1/2″-20 UNF-2A; 3/4″-16 UNF-2A; 1″-14 UNS-2A

Material

2Cr13 Stainless Steel
