563YHM2 Weigh Module for Single-Ended Beam Load Cells

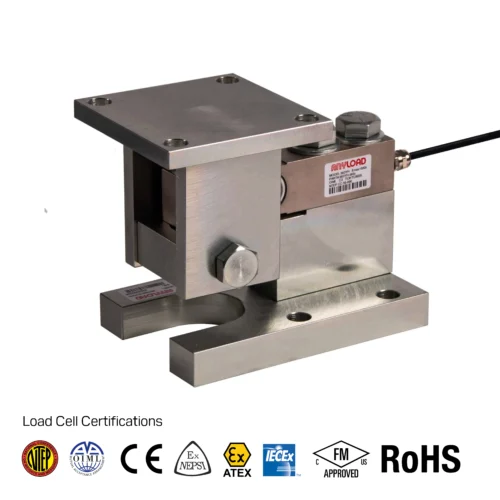

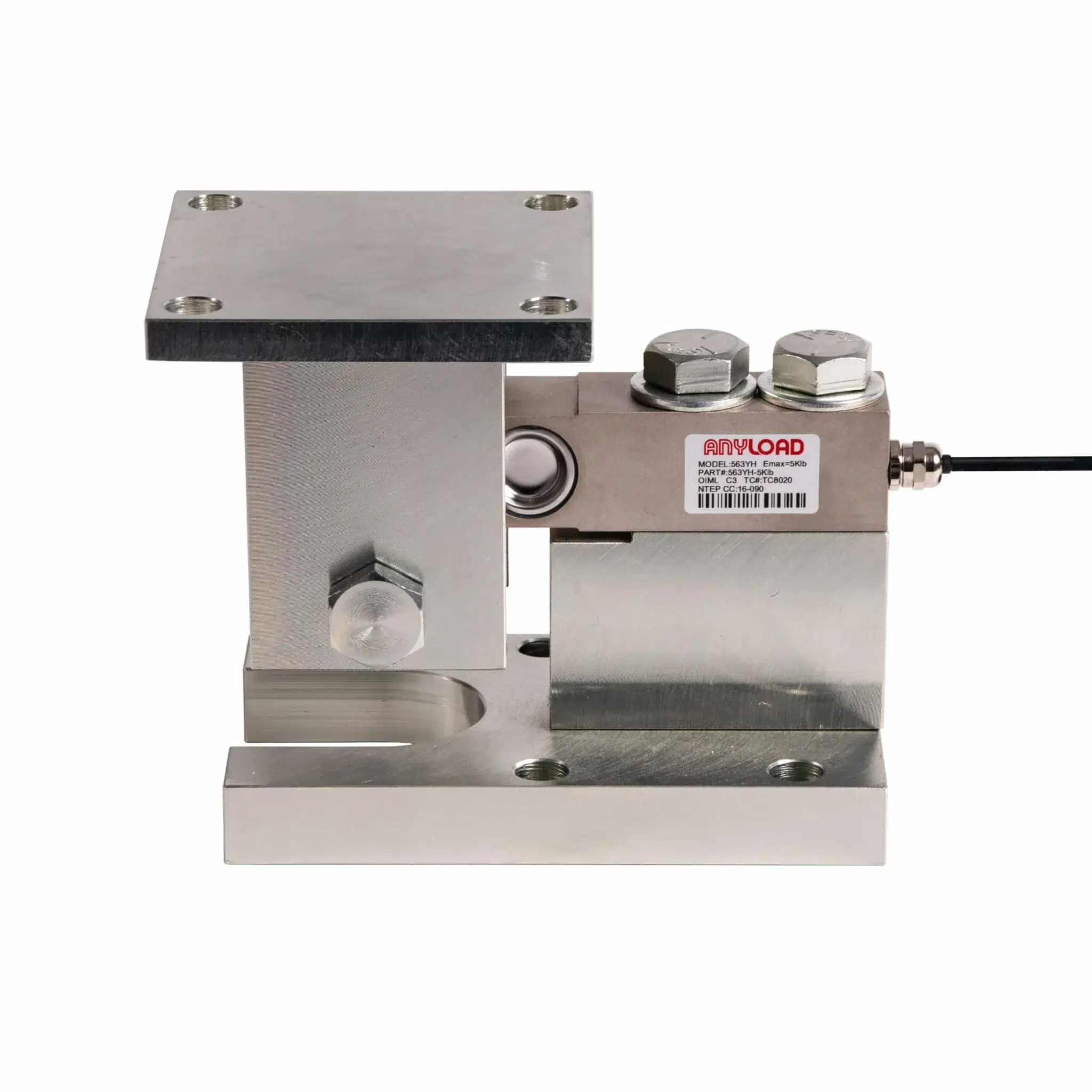

The Anyload 563YHM2 is an alloy steel weigh module for 563YH series single-ended beam load cells, available in capacities from 100 lb to 10,000 lb. Center-pivoted and self-checking, it converts tension loads into compression for the load cell, and protects from lifting forces up to 50% of rated load.
PRODUCT DETAILS
The 563YHM2 weigh module is engineered for single-ended beam load cells in tank, hopper, and vessel weighing applications ranging from 100 lb to 10,000 lb. Its center-pivoted, self-checking design automatically distributes load evenly across the weighing point, while accommodating thermal expansion, structural deflection, and minor misalignments in the support structure without affecting measurement accuracy.
A unique feature of this module is its ability to convert tension loads (uplift forces) applied to the load cell into compression, protecting the typically compression-rated cell from damaging tension overloads. The alloy steel construction provides robust mechanical strength for demanding industrial environments.
Most Common Applications: Tank and vessel weighing, hopper scales, silo weighing, process industry platform scales, industrial liquid storage weighing.
| Capacities | 563YHM2-(0.1-SE5) Klb: 100 lb to SE5,000 lb (45 kg to 2,268 kg); 563YHM2-(5-10)Klb: 5,000 lb to 10,000 lb (2,268 kg to 4,536 kg) |
|---|---|
| Material | Alloy Steel |
