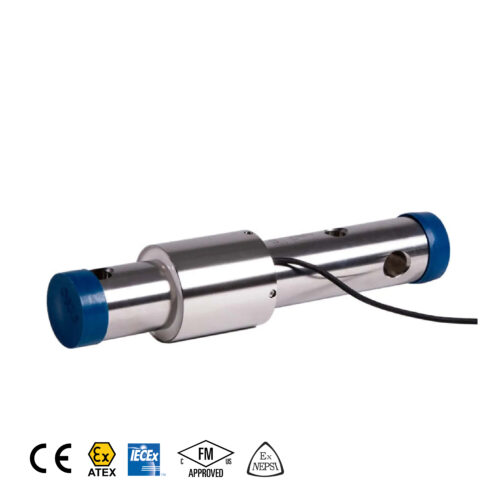

563WS-AB Single-Ended Beam Weigh Bar
The Anyload 563WS-AB is a 2Cr13 stainless steel single-ended beam weigh bar rated to 18,000 lb (8,165 kg) with IP67 protection and an M12 male connector at the end of the cable. With a full-scale output of 0.9 mV/V ±1% and an operating temperature range of -20°C to +50°C (-4°F to 122°F), it is designed for agricultural and industrial weighing applications requiring stainless steel construction with a quick-connect electrical interface, with ATEX, FM, and IECEx certified versions available.
PRODUCT DETAILS
The 563WS-AB is a stainless steel single-ended beam weigh bar, combining 2Cr13 stainless steel corrosion resistance with an integrated M12 male quick-connect electrical connector, simplifying field wiring and enabling faster installation and servicing compared to traditional fixed-cable weigh bars. Rated at 18,000 lb (8,165 kg) and sealed to IP67, it is designed for agricultural and industrial applications where both stainless construction and rapid-disconnect wiring are required. The M12 5-pin connector provides a secure, environmentally protected electrical connection in a standard industrial format. Full-scale output is 0.9 mV/V ±1% with a 4.88 m (16 ft) cable. The operating temperature range is -20°C to +50°C (-4°F to 122°F), supporting reliable performance in cold outdoor field conditions. Safe overload is 150% and breaking overload is 300% of full scale. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix.
Most Common Applications: Agricultural equipment weighing requiring quick-disconnect wiring, grain cart and feed mixer scales, stainless steel industrial floor scales, wash-down platform weighing, and applications requiring field-serviceable electrical connections.
| Capacities | 18,000 lb (8,165 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.05% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 0.9 mV/V ±1% |
| Maximum Excitation | 15 VDC |
| Input Resistance | 350 Ω ±7 |
| Output Resistance | 350 Ω ±3 |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Compensated Temperature | – |
| Sealing Standard | IP67 |
| Material | 2Cr13 Stainless Steel |
| Protective Coating | – |
