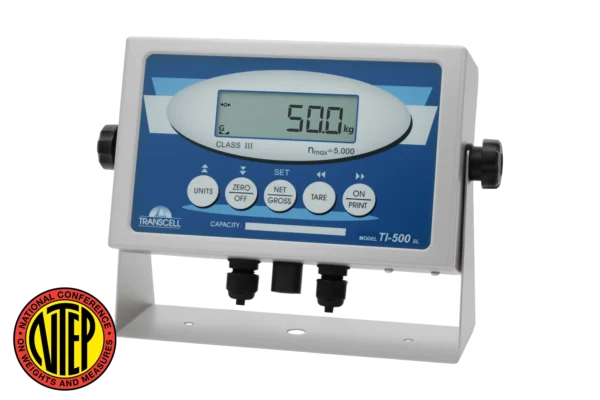

TI-500SL Battery-Powered Weight Indicator
The Transcell TI-500SL is a rugged NEMA 4X stainless steel weight indicator with a rechargeable lead-acid battery providing approximately 29 hours of operation, a backlit LCD display reading up to 50,000 graduations, and NTEP Class III (5,000 divisions) and Measurement Canada approval. Purpose-built for demanding industrial and portable commercial weighing applications.
PRODUCT DETAILS
The TI-500SL is a battery-powered digital weight indicator designed for industrial environments. Its 6-volt 3 Ah internal rechargeable lead-acid battery delivers approximately 29 hours of field operation on a single charge – far exceeding the runtime of many competitors – while an included AC adapter allows simultaneous use and recharging during prolonged fixed-location use. The NEMA 4X / IP65 stainless steel enclosure protects against dust, water, and corrosion, and the stainless steel swivel stand allows the indicator to be repositioned easily for optimal operator viewing.
Front-panel configuration of all parameters eliminates the need for a PC during setup, speeding deployment in remote or time-sensitive locations. The auto weight capture function is especially valuable in portable applications such as livestock weighing and field inspection, where the load on the platform may not be completely stable. With NTEP Class III certification (5,000 divisions, NTEP CC 94-080A3) and Measurement Canada approval (AM-5800C), the TI-500SL meets legal-for-trade requirements across North America.
Most Common Applications: Portable commercial trade scales, livestock and agricultural weighing,industrial floor scales in remote or washdown locations.
| Power Supply | 12 VDC 800 mA wall adaptor |
|---|---|
| Display | 0.8 in (20 mm) 6-digit LCD with LED backlight |
| Enclosure | Stainless steel NEMA 4X IP65 |
| Communications & Output | RS-232C (demand or continuous) |
| Load Cell Input | up to 4 pcs 350 Ohms |
| Resolution | Up to 50,000 graduation |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Dimensions | 8.9 x 5.5 x 2.9 in (226 x 140 x 74 mm) |
| Approvals | NTEP Class III 94-080A3, Measurement Canada AM-5800C |
