563WH-24B Single-Ended Beam Weigh Bar

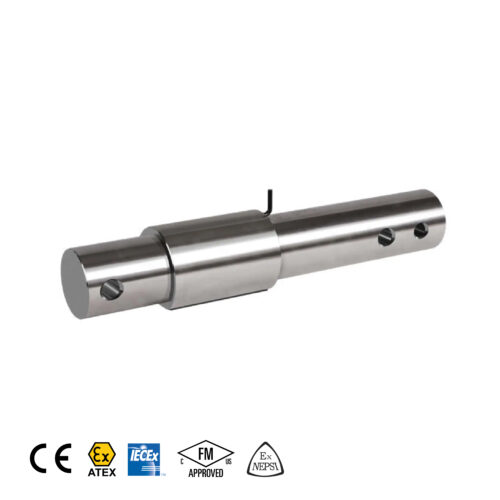

The Anyload 563WH-24B is an electrophoretic paint over nickel-plated alloy steel single-ended beam weigh bar rated to 23,000 lb (10,433 kg) with IP67 protection and a full scale output of 1.15 mV/V ±1%. The highest-capacity model in the WH weigh bar series, it is designed for the heaviest agricultural and industrial weighing applications, with ATEX, FM, and IECEx certified versions available.
PRODUCT DETAILS
The 563WH-24B is the highest-capacity alloy steel single-ended beam weigh bar, rated at 23,000 lb (10,433 kg) for the most demanding agricultural and heavy-duty industrial weighing applications. The cell body is manufactured from alloy steel with an electrophoretic paint finish over nickel plating for multi-layer corrosion protection in harsh field and industrial environments. Sealed to IP67 with a compensated temperature range of -10°C to +50°C (14°F to 122°F), the 563WH-24B delivers dependable accuracy at its 23,000 lb rated capacity. The full scale output is 1.15 mV/V ±1% with an 11 m (36.1 ft) cable and an excitation voltage of 10VDC (Max of 15 VDC). Safe overload is 150% and breaking overload is 300% of full scale. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for hazardous area applications.
Most Common Applications: Heavy-duty grain cart weighing, large agricultural equipment scales, heavy industrial floor scales, high-capacity platform weighing systems, heavy-duty process and vessel weighing.
| Capacities | 23,000 lb (10,433 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.05% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 1.15 mV/V ±1% |
| Maximum Excitation | 15 VDC |
| Input Resistance | 375 Ω ±25 |
| Output Resistance | 350 Ω ±3 |
| Operating Temperature | − |
| Compensated Temperature | −10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP67 |
| Material | Alloy Steel |
| Protective Coating | Nickel Plated and Electrophoretic Paint |
